Torsionally flexible coupling ROTEX® GS HP

compactshaftair

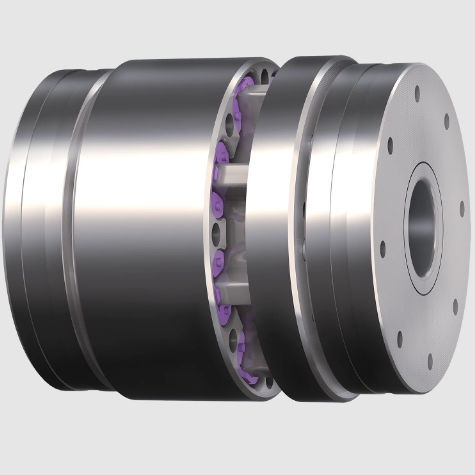

The ROTEX GS HP (high-performance coupling) is a three-part, backlash-free high-speed coupling. It was developed according to the highest standard for applications with higher speeds. Subject to the closed design the high-speed coupling generates only minimum air turbulences resulting in only low noise generation even with highest load. The ROTEX GS HP (high-performance coupling) is available in various hub versions for different mounting conditions. Its ability for axial plug-in combined with various hub geometries results in a compact coupling system easy to service with a high torque density. Applications of our high-speed coupling ROTEX GS HP (high-performance coupling): ROTEX GS HP is used wherever severely high speeds are generated, e. g. on main spindle drives and test benches. Features torsionally flexible high-speed coupling / high-performance coupling for severely high speeds (up to a circumferential speed of 175 m/s ) backlash-free compensating for axial, radial and angular shaft displacements compact: small shaft distance dimension General Description description of ROTEX GS servo couplings: Our ROTEX GS servo couplings are torsionally stiff shaft couplings soft in bending serving as a connection element between drive unit and measuring sensor. They transmit the torque free from backlash and conformally. This makes our backlash-free shaft couplings highly accurate. They also allow for simultaneous compensation of radial, axial and angular displacements. Thanks to the high variety of coupling types and hub designs we are able to supply the right coupling for almost every application.
