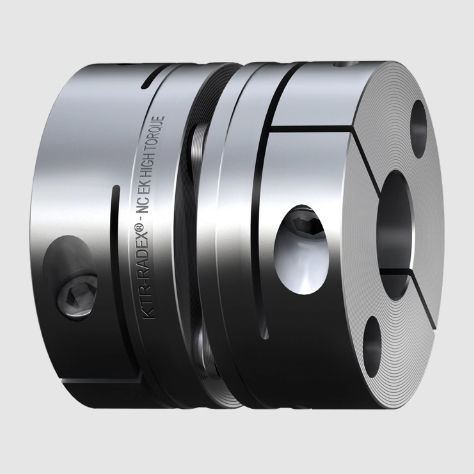

Flexible coupling RADEX®-NC seriescompactstainless steelsteel
Add to favorites
Compare this product
Characteristics
- Type
- flexible
- Construction
- compact, stainless steel, steel
- Product applications
- for shafts, for servo motors, for automation
- Performance
- backlash-free, maintenance-free
- Installation system
- flange
- Torque
Min.: 2.5 Nm
(1.843905 ft.lb)Max.: 3,200 Nm
(2,360.198878 ft.lb)- Rotational speed
Min.: 3,700 rpm
(23,247.7856 rad.min-1)Max.: 20,400 rpm
(128,176.9803 rad.min-1)
Description
The set of torsionally stiff steel laminas flexible in bending offsets axial, angular and radial shaft displacements. As an all-metal coupling - the laminas are made of stainless steel - RADEX®-NC can be used with temperatures up to +200 °C and under aggressive ambient conditions. RADEX-NC is provided with clamping hubs or clamping ring hubs.
The backlash-free servo couplings RADEX-NC are provided with clamping hubs or clamping ring hubs.
Our servo laminae couplings are available as two types:
RADEX-NC EK = single-cardanic servo laminae coupling
RADEX-NC DK = double-cardanic servo laminae coupling
Applications of our servo laminae couplings RADEX-NC:
Typical applications for RADEX-NC are backlash-free gearboxes, handling systems, drives for automation and in general drive technologies demanding for high torsional stiffness or high ambient temperatures.
Overview: RADEX®-NC backlash-free servo laminae couplings
Backlash-free servo laminae couplings for use in servo technology.
