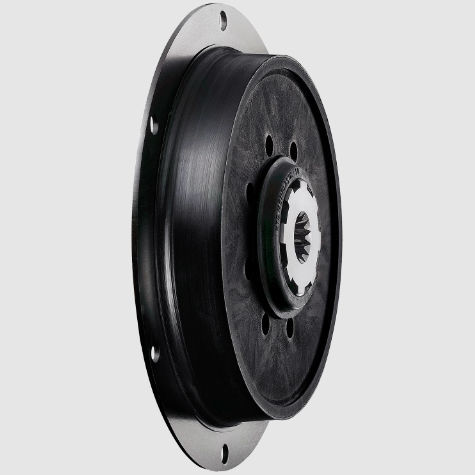

Curved-tooth gear coupling MONOLASTIC® SAE

motorfor shaftstransmission

The MONOLASTIC flange coupling as an SAE type is a one-piece, flexible coupling with torque-to-bore volume ratio for the drive of diesel engine in combination with hydraulic pumps. The steel hub with internal spline already pre-assembled on the flange coupling allows for axial plug-in connection with the pump shaft. This type has a flange connection acc. to SAE 6 1/2" to 11 1/2" as well as special connections and is available for all common SAE and DIN pump spline shafts. The elastomer enables high radial and angular displacements. This flange coupling is centered via the steel flange on the engine flywheel. Features one-piece, torsionally flexible flange coupling for the drive in diesel engine/hydraulic pump up to 250 kW available in various kinds of Shore hardness axial plug-in in combination with pump spline shaft available for SAE and DIN pump spline shafts
