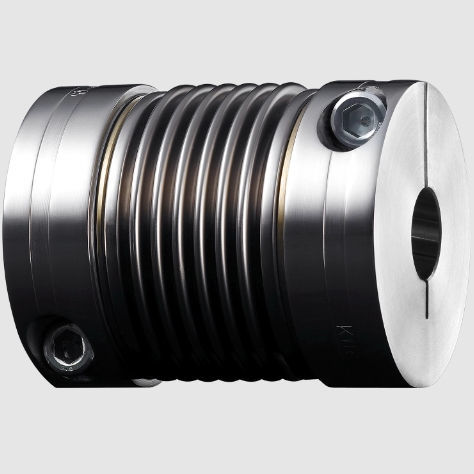

Flexible coupling TOOLFLEX® series

compactstainless steelsteel

The TOOLFLEX is a metal bellows coupling that is backlash-free, torsionally stiff and flexible – as an all-metal coupling with a stainless steel bellows. Depending on the size and type, aluminium or steel is used as the material for the coupling hubs - in each case to match the selected type of shaft connection. The metal bellow optimally compensates for axial, radial and angular displacements with conformal torque transmission and low restoring forces. At the same time TOOLFLEX has a high torsional stiffness and a low mass moment of inertia. It is free from wear and maintenance and extremely easy to assemble. Overview: TOOLFLEX® metal bellow-type couplings TOOLFLEX® metal bellows couplings are designed to be torsionally rigid and capable of equalisation - ideal for precise applications where zero backlash, shaft displacement or shaft replacement play a role. The couplings are characterised by high torsional stiffness, a low mass moment of inertia and the compensation of axial, radial and angular displacements.
