Plug valve
pneumaticcontroldistribution

plug valve
plug valve
plug valve
plug valve
plug valve
plug valve
plug valve
Add to favorites
Compare this product


Characteristics

Type
plug
Operation
pneumatic
Function
control, distribution, bleed
Body
double
Applications
industrial, turbine, actuator
Other characteristics
automatic, emergency, quick-closing, thermal
DN

Min.: 50 mm
(1.969 in)

Max.: 300 mm
(11.811 in)

Pressure

40 bar
(580.2 psi)

Temperature

180 °C
(356 °F)

Description

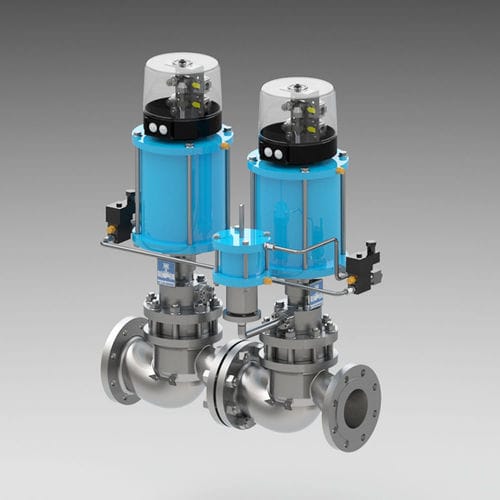

COMBINATION OF GAS TURBINE QUICK-CLOSING VALVES TYPE KVH-KVH In view of the requirements of the European laws and regulations, KÜHME offers quick-closing gas turbine valves especially designed for emergency shut-down (ESD) as double block and bleed valve unit with intermediate ventilation, completely ready for installation. The quick-closing valves combine the core competencies of KÜHME in valve technology with those of a system supplier for plant installations tailored to the demand. Fuels: gaseous Applications: Thermal Power Plants, Gas Turbines, Biogas & Landfill Gas, Pipeline & Gas Distribution Systems, Industrial Combustion NOMINAL SIZE: DN 50 TO DN 300 OPERATING PRESSURE: MAX. 40,0 BAR G OPERATING TEMPERATURE: MAX. + 180°C YOUR BENEFITS Closing time < 1 second Safety during ESD operation due to absolute tightness Pressure-balanced valve for operation of high differential pressures Optionally available as quick-closing control valve combination Heavy duty design for high amount of operating cycles igh-performance valve with a long service life perfectly assembled unit, completely ready for installation H2-ready OPERATION DETAILS The quick-closing valves are operated by a pneumatic actuator with a solenoid control valve. Automatic quick-closing is carried out by means of spring force in less than 1 second. At the same time, the intermediate ventilation valve type KEV opens within 1 second and relieve the gas volume between the closed quick-closing valves. The soft seal attached at the valve cone guarantees absolute tightness (leakage rate A in acc. with EN 12266-1).

Catalogs

No catalogs are available for this product.

See all of Kühme Armaturen GmbH‘s catalogs

Exhibitions

Meet this supplier at the following exhibition(s):

ACHEMA 2024
ACHEMA 2024

10-14 Jun 2024 Frankfurt am Main (Germany) Hall 8.0 - Stand K94

  • More information
