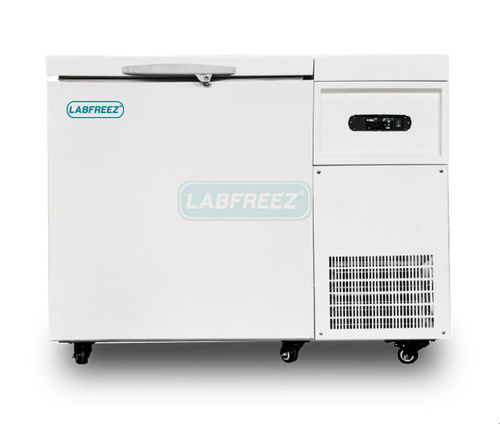

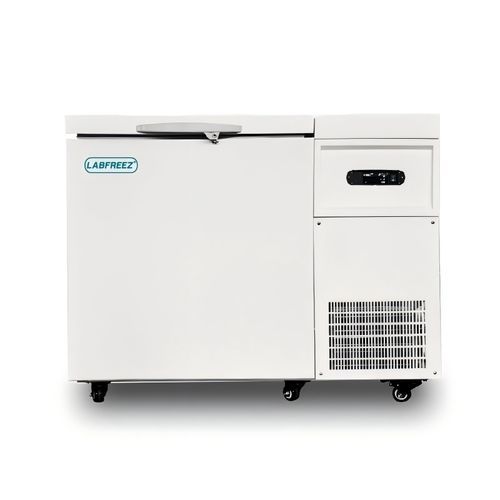

Chest freezer LFZ-60W series

laboratory220 Vultra-low-temperature

Short description
Chest-type -60°C ultra-low temperature freezer designed for long-term storage of biological materials including viruses, bacteria, erythrocytes, leukocytes and skin. Suitable for blood banks, hospitals, epidemic prevention agencies, research institutes, industrial laboratories, biological engineering and marine fisheries.

Application

• Storage of biological products and temperature-sensitive physical/chemical materials such as blood plasma, vaccines and reagents.
• Suitable for hospitals, blood stations, public health and immunology services, chemical and military industries, electronics, animal husbandry, university laboratories and pelagic fisheries.

Advanced Cooling System
Fully covered evaporator, high-efficiency compressor and optimized condenser layout provide stable and efficient refrigeration.

Precise Microcomputer Temperature Control

• Microprocessor-based controller with digital temperature display; resolution 0.1°C.
• Adjustable internal range: -25°C to -60°C.
• Stable temperature control independent of ambient conditions; meets requirements for reagents, pharmaceuticals and samples.

Operating Security

• Alarm module monitors ambient and system status for safety and reliability.
• Alarms include high temperature, low temperature, sensor failure and power failure (power-failure alarm memory up to 48 hours).
• Two alarm modes: buzzer and flashing.

Avoid Falsification and Wrong Operation
Keyboard lock and password protection prevent accidental parameter changes.

Power Failure Protection
Delay-start function on power restoration prevents simultaneous startup of multiple devices and protects the equipment and power network.

Humanized Design

• Interior: SUS304 stainless steel; Exterior: painted steel.
• Wide voltage tolerance: 187V–242V.
• Lockable lid design to prevent unauthorized access.
• Large-screen display for easy reading.

Technical parameter
Model | LFZ-60W58 | LFZ-60W105 | LFZ-60W118 | LFZ-60W258 | LFZ-60W358 | LFZ-60W485
Capacity | 58L | 105L | 118L | 258L | 358L | 485L
Temperature range | -25°C ~ -60°C | -25°C ~ -60°C | -25°C ~ -60°C | -25°C ~ -60°C | -25°C ~ -60°C | -25°C ~ -60°C
Display | LCD | Digital | Digital | Digital | Digital | Digital
Alarm | High temp / Low temp / Sensor failure | High temp / Low temp / Sensor failure | High temp / Low temp / Sensor failure | High temp / Low temp / Sensor failure | High temp / Low temp / Sensor failure | High temp / Low temp / Sensor failure
Exterior Size (W×D×H) mm | 670×760×1025 | 680×580×935 | 1270×780×990 | 1510×885×1090 | 1810×885×1090 | 1695×805×955
Internal size (W×D×H) mm | 410×410×385 | 480×380×665 | 540×400×590 | 780×500×690 | 1080×500×690 | 1455×525×665
External material | Painted steel (all models)
Internal material | SS304 (all models)
Power | 300W | 304W | 450W | 720W | 750W | 485W
Door lock | Yes (all models)
Weight (N.t / G.t) | 70/80 kg | 62/69 kg | 110/120 kg | 220/230 kg | 232/240 kg | 124/138 kg
Power supply | 220V / 50Hz/60Hz (all models)

Specifications

• Series: LFZ-60W Series (models: LFZ-60W58, LFZ-60W105, LFZ-60W118, LFZ-60W258, LFZ-60W358, LFZ-60W485)
• Temperature operating range: -25°C to -60°C (adjustable)
• Inner material: SUS304 stainless steel; outer cabinet: painted steel
• Temperature controller: microprocessor-based, digital/LCD display, 0.1°C resolution
• Safety features: high/low temperature alarm, sensor failure alarm, power-failure alarm, audible and visual alarms, keyboard lock and password protection
• Power protection: delayed restart after power restoration to prevent inrush/startup impact
• Door: lockable design on all models
• Voltage tolerance: operates within a wide voltage range (approx. 187V–242V); nominal supply 220V/50Hz or 60Hz
• Examples of capacities by model: 58L, 105L, 118L, 258L, 358L, 485L
• Examples of power consumption by model: 300W, 304W, 450W, 720W, 750W, 485W
• Typical external and internal dimensions as listed in technical table above
