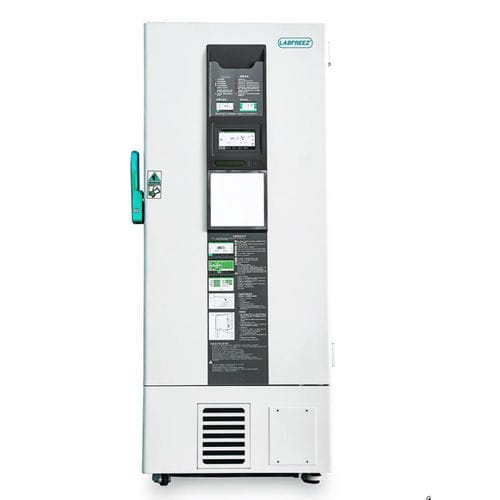

Upright freezer LFZ-86L series

laboratoryprocessmanual defrost

Product summary

• Designed for long-term preservation of viruses, microorganisms, vaccines, biological tissues and organs, specialized food, medicines and reagents.
• Suitable for research institutions, hospitals, blood banks, epidemic prevention centers, laboratories in electronics and chemical industries, biological engineering and marine fisheries.
• Wide-voltage design: operates from 187 V to 242 V.

Applications

• Long-term storage of biological samples: viruses, germs, vaccines, tissues, organs, reagents and pharmaceutical materials.
• Used in blood banks, clinical and research laboratories, epidemic control services, industrial R&D and production environments.

Refrigeration system

• VIP + special polyurethane (PU) foam insulation approx. 150 mm thick for high thermal performance.
• Dual-cascade refrigeration with direct cooling design; maintains rated performance at high ambient temperatures (up to 43°C).
• Cooling components designed for replaceability and serviceability to extend service life.
• Equipped with Temperite oil separator, Tecumseh/SECOP compressors and CFC-free refrigerant.

Temperature controller

• Microprocessor-based controller with touch digital LCD for precise temperature readout and control.
• USB port allows export of three months of temperature and alarm logs.
• Optional Wi‑Fi monitoring module and dedicated software for remote supervision and data access.

Security & alarms

• Multi-condition alarms: high/low temperature, high ambient temperature, sensor error, power failure, abnormal voltage, low battery, door ajar, filter check, condenser failure.
• Buzzer and flashing alarm; remote alarm port and message alarm available as options.
• Fail-safe alarm behavior: muted buzzer will resume if fault persists; back-up battery supports alarms for ~72 h after power loss; battery-life warning before replacement.
• Keyboard lock and password protection to prevent accidental parameter changes.
• Power-on delay feature to protect site network and avoid simultaneous start-up of multiple devices after power restoration.

Features

• Removable condenser cover for easy maintenance and cleaning.
• Reserved installation hole for chart recorder; optional chart recorder available.
• Protective covers for power switch, external alarm port and USB port.
• Door safety lock and removable inner door for secure access and maintenance.
• Adjustable stainless-steel shelves and professional double test ports.
• Adjustable castors/wheels for leveling and maneuvering.
• Optional frozen racks; foamed inner and outer doors; forced inner door handle; three-layer silicone door seals.
• Noise-damping materials and high-density fire-proof sound-absorbing cotton fitted to components to reduce operational noise.
• Wide ambient operating range: can achieve -86°C with ambient temperatures from 10°C to 43°C.

Technical table (rows shown as lines; columns separated by " | ")
Model | LFZ-86L338 | LFZ-86L408 | LFZ-86L588 | LFZ-86L728 | LFZ-86L838
Picture | | | | |
Specifications - Shelf/drawer QTY | Stainless steel shelf/3 | Stainless steel shelf/3 | Stainless steel shelf/3 | Stainless steel shelf/3 | Stainless steel shelf/3
Cooling | Direct cooling | Direct cooling | Direct cooling | Direct cooling | Direct cooling
Defrost | Manual | Manual | Manual | Manual | Manual
Refrigerant | HC | HC | HC | HC | HC
Power Consumption (kWh/24h) | 12.8 | 11.6 | 12 | 15.4 | 15
Noise (dB) | 50 | 50 | 53 | 53 | 53
Ambient temperature (°C) | 10~32°C | 10~32°C | 10~32°C | 10~32°C | 10~32°C
Temperature range (°C) | -40 ~ -86°C | -40 ~ -86°C | -40 ~ -86°C | -40 ~ -86°C | -40 ~ -86°C
Cooling system - Compressor brand/QTY | SECOP/2 | SECOP/2 | SECOP/2 | SECOP/2 | SECOP/2
Sensor | PTC | PTC | PTC | PTC | PTC
Temperature controller | Microprocessor | Microprocessor | Microprocessor | Microprocessor | Microprocessor
Display | LCD display | LCD display | LCD display | LCD display | LCD display
Power - Voltage/frequency (V/Hz) | 220/50Hz | 220/50Hz | 220/50Hz | 220/50Hz | 220/50Hz
Power (W) | 870W | 845W | 815W | 935W | 890W
Current (A) | 6.75A | 7A | 7A | 7A | 7A
Material - Inside material | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel
Material - Outside material | Color sprayed steel | Color sprayed steel | Color sprayed steel | Color sprayed steel | Color sprayed steel
Insulation | PURF | PURF | PURF | PURF | PURF
Size - Capacity (L/cu.ft) | 338/11.93 | 408/14.40 | 588/20.76 | 728/25.70 | 838/29.59
NT./GT. (kg) | 250/305 | 292/317 | 307/368 | 360/401.5 | 397/430
Exterior size (W*D*H mm) | 880*980*1940 | 900*940*1940 | 880*1080*2000 | 1260*890*2010 | 1190*1045*2010
Interior size (W*D*H mm) | 488*607*1140 | 606*575*1180 | 606*738*1310 | 963*558*1350 | 894×718×1310
Package size (W*D*H mm) | 940*1070*2130 | 955*960*2100 | 975*1140*2200 | 1320*970*2190 | 1270*1105*2220
CBM | 2.14 | 1.93 | 2.45 | 2.80 | 3.12
20GP/40GP/40HQ (pcs) | 12/24/24 | 12/24/24 | 12/24/24 | 8/18/18 | 8/18/18
Frozen Racks - Racks | 12 (4x4) | 16 (5x4,4x4) | 16 (5x5) | 18 (5x4)+6 (6x4) | 24 (5x5)
Boxes (2 inch) | 192 | 288 | 400 | 504 | 600
Samples (2 ml) | 19200 | 28800 | 40000 | 50400 | 60000
Alarms - High/low temperature | Y | Y | Y | Y | Y
Alarms - Power failure | Y | Y | Y | Y | Y
Alarms - Abnormal voltage | Y | Y | Y | Y | Y
Alarms - Sensor error | Y | Y | Y | Y | Y
Alarms - Filter screen check | Y | Y | Y | Y | Y
Alarms - Thermostat failure | Y | Y | Y | Y | Y
Alarms - Low battery | Y | Y | Y | Y | Y
Alarms - Condenser clean | Y | Y | Y | Y | Y
Alarms - High ambient temperature | Y | Y | Y | Y | Y
Alarms - Door ajar | Y | Y | Y | Y | Y
Accessories - Castor | Y | Y | Y | Y | Y
Accessories - Inside door | 2 | 2 | 2 | 2 | 2
Accessories - Test hole QTY/diameter | 2 / 25 mm | 1 / 25 mm | 1 / 25 mm | 1 / 25 mm | 1 / 25 mm
Accessories - USB port | Y | Y | Y | Y | Y
Accessories - Chart recorder | Optional | Optional | Optional | Optional | Optional
Accessories - Data logger | Optional | Optional | Optional | Optional | Optional
Accessories - Power failure backup (alarm) | 72 h | 72 h | 72 h | 72 h | 72 h
Accessories - Remote alarm port | Y | Y | Y | Y | Y
Optional - CO2 back up system | Optional | Optional | Optional | Optional | Optional
Optional - LN2 back up system | Optional | Optional | Optional | Optional | Optional

Technical specifications

• Model family: LFZ-86L Series (models/capacities available: 338 L, 408 L, 588 L, 728 L, 838 L).
• Temperature range: -40°C to -86°C (ultra-low temperature).
• Cooling architecture: dual-cascade refrigeration with direct cooling; SECOP/Tecumseh compressors (2 per unit depending on model).
• Insulation: VIP + polyurethane foam (~150 mm thickness).
• Controller & display: microprocessor controller with touch LCD; USB data export (3 months); optional Wi‑Fi monitoring.
• Alarms: comprehensive multi-condition alarm system with remote alarm port and ~72 h battery backup.
• Materials: stainless-steel interior; color-sprayed steel exterior; removable shelves and inner doors.
• Power: typically 220 V / 50 Hz; power consumption model-dependent (approx. 815–935 W).
• Noise level: approx. 50–53 dB depending on model.
• Options: chart recorder, data logger, CO2 or LN2 backup systems, remote monitoring, frozen racks.
• Typical use-cases: blood banks, hospitals, laboratories, epidemic control services, electronics/chemical industry labs, biological engineering and fisheries.
