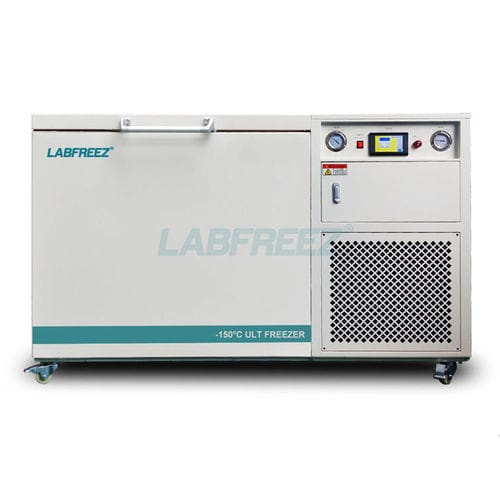

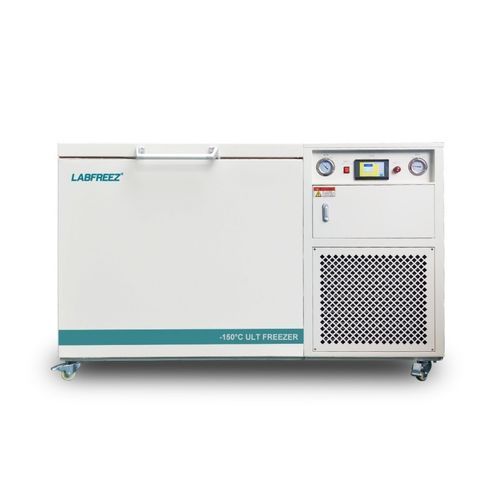

Chest freezer MR-DF-UW series

laboratoryventilatedR134a

Product overview
Chest-type ultra-low temperature cryogenic freezers MR-DF-UW Series provide controlled storage down to -150°C for research, biobanking and industrial low-temperature testing. Available in two capacities (128 L and 258 L) with optional LN (liquid nitrogen) standby.

Application of Minus 150C Cryogenic Freezer
Designed for long-term storage and testing of biological materials and temperature-sensitive samples: red and white blood cells, skin, DNA/RNA, bone, bacteria, semen, biomedical products, marine samples, electronic components and specialty materials. Suitable for blood banks, hospitals, public health and epidemic stations, electronics manufacturers, university and research laboratories, military facilities and pelagic fishery operations.

Features of Minus 150C Cryogenic Freezer
Control System

• Microprocessor-based controller with adjustable setpoint range -110°C to -152°C; control resolution 1°C; digital LED temperature display.
• Keyboard lock and password-protected configuration; delayed start and safe-stop interval to prevent rapid cycling.
• Audible and visual alarms: high/low temperature, power failure, low battery, door-open, filter blockage, system fault.
• Optional temperature printer with recording capability; 72-hour backup for controller display and printer.
• Power: standard 380V/50Hz three-phase; configurable to 220V 50/60Hz single-phase.

Structure Design

• Chest-type layout with stainless steel interior and painted steel exterior panels.
• Four casters for mobility (two with brakes) and rotatable assistant door handle; top lid with key lock.
• Double-seal lid and two-stage foaming with 155 mm insulation thickness; VIP insulation option available.
• Optional accessories: chart recorder, LN standby system, storage racks and cryoboxes, remote alarm system.

Refrigeration System

• Imported compressor (Danfoss/Tecumseh cited).
• EBM fan motor (Germany).
• Specialized refrigeration circuit with unipolar compressor oil-lubrication.
• China-patented mixed refrigerant technology (examples: R134a, R404a, R23, R410A, N2); CFC-free.
• Certifications: CE, ISO 9001, ISO 14001, ISO 13485.

Specifications
Model
MR-DF-UW128 | MR-DF-UW258
Control system
Temperature range: -110°C ~ -152°C
Temperature accuracy: 1°C
Display: LED digital
Alarm: Visual & audible — high/low temperature, power failure, low battery, door open, filter blocking, system failure
Keyboard lock: Password protected
Temperature recorder: Optional chart printer & 72-hour backup
Power supply: 380V/50Hz (3-phase) or 220V/50/60Hz (single-phase configurable)
Input power: 2600W | 3000W
Refrigeration system
Compressor: DANFOSS (cited) | Fan: EBM (Germany)
Refrigerant: CFC-free mixed refrigerant (patented)
Certificates: CE / ISO 9001 / ISO 13485 / ISO 14001
Structure
Capacity: 128 L | 258 L
Style: Chest type
Inner material: Stainless steel
Outer material: Painted steel panel
Caster: 4 pcs (2 with brake)
Door handle: Full handle with key lock
Insulation: 155 mm foaming layer, double seal (VIP option)
External size (WxDxH) mm: 880 × 1590 × 1040 | 890 × 2085 × 1009
Inside size (WxDxH) mm: 370 × 600 × 550 | 410 × 1140 × 552
Weight (N.t / G.t): 215 / 250 kg | 260 / 330 kg

Optional items
MR860001 - Chart recorder
MR860002 - LN standby system
MR860003 - Racks
MR860004 - Cryobox
MR860005 - Remote alarm system

Technical specifications

• Model: MR-DF-UW Series (MR-DF-UW128 and MR-DF-UW258)
• Temperature range: -110°C to -152°C
• Temperature accuracy: 1°C
• Display: LED digital controller
• Alarms: Visual and audible (multiple alarm types)
• Power: typically 380V/50Hz 3-phase (configurable to 220V 50/60Hz single-phase)
• Input power: 2600W (128L) / 3000W (258L)
• Compressor: imported (Danfoss/Tecumseh class)
• Fan: EBM (Germany)
• Refrigerant: CFC-free mixed refrigerant (patented mix)
• Insulation: 155 mm foaming, double seal, VIP option
• Interior: stainless steel; Exterior: painted steel panel
• Capacity options: 128 L and 258 L (chest type)
• Dimensions and weights as listed above
• Certificates: CE, ISO 9001, ISO 13485, ISO 14001
