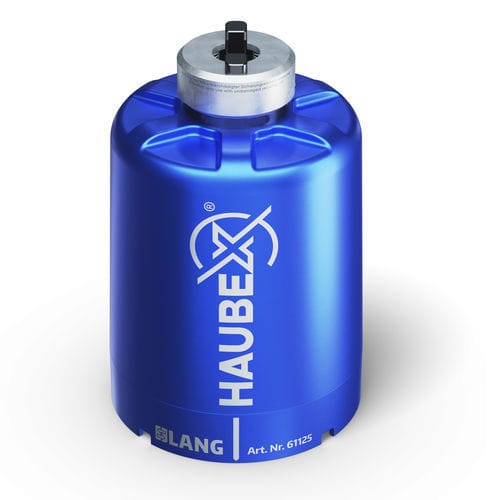

Workpiece workholding hood 61125

for zero-point clamping systems

HAUBEX, Workholding Hood
ø 125 x 185 mm
The aluminium workholding hood is the carrier system which transfers vice and workpiece blank from the tool magazine into the zero-point clamping system on the machine table. By means of a 90° closing movement, it opens and locks the zero-point system mechanically, which means that the system does not require any additional utilities on the machine side. A safety element between the workholding hood and the tool holder acts as a buffer and protects the machine spindle in the event of unexpected collisions. An integrated guide and fixation secures the vice against unintentional release from the workholding hood and ensures a secure fit.

The four different tool holders are available separately.

Further information can be found in our catalog starting on page 250 or
online at https://lang-technik.de/en/solutions/automation/haubex-automation
