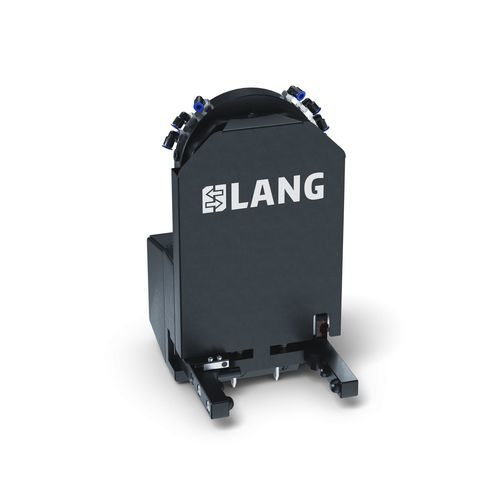

Pneumatic gripper 64855

for industrial robotsindustrial

RoboTrex 96, Gripper
system size 125, pneumatic
This version of the automation gripper is used in the RoboTrex 96 automation system. The matching zero point clamping system within the machine tool is actuated pneumatically via the integrated interface on the gripper. The compatible vise size for the pneumatic gripper is Makro•Grip® 125. The maximum workpiece weight for this combination of gripper and vise is 25 kg, provided the standard Fanuc robot type M-710iC/50 is used. A larger robot variant is also available as an option, which increases the maximum workpiece weight to 45 kg for RoboTrex 96.

Further information can be found in our catalog starting on page 212 or
online at https://lang-technik.de/en/solutions/automation/robo-trex-automation-system
