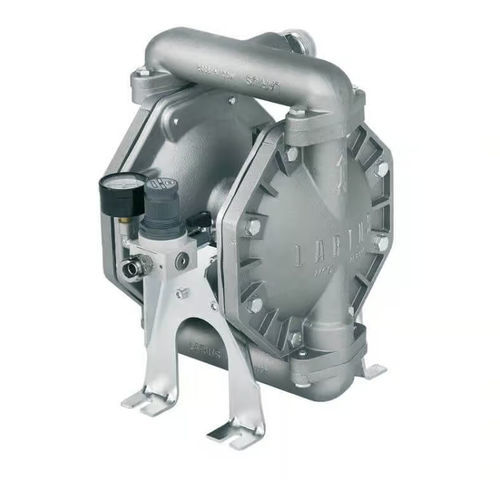

Double-diaphragm pump L4 1:1airpneumaticself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- double-diaphragm
- Fluid
- air
- Operation
- pneumatic
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- transfer, handling
- Material
- stainless steel, aluminum
- Protection level
- ATEX, rugged, reinforced
- Other characteristics
- compact, small, adjustable
- Flow
40 l/min, 190 l/min, 320 l/min, 440 l/min
(10.56688 us gal/min, 50.19269 us gal/min, 84.53506 us gal/min, 116.2357 us gal/min)- Pressure
Max.: 7 bar
(101.526 psi)Min.: 1 bar
(14.504 psi)- Length
215 mm
(8 in)- Width
206 mm
(8.11 in)- Height
320 mm, 390 mm
(12.6 in, 15.35 in)
Description
The proven performance of self-priming double diaphragm package allows accurate handling and transfer of a wide range of fluids, guaranteeing efficient operation, maximum productivity and the possibility of supplying multiple workstations simultaneously.
The L4 1:1 air operated transfer unit, with a robust structure, is available in the aluminum or stainless steel version to reach a long-lasting performance.
Advantages
Atex certified Ex II 2 G c IIB T4
Low starting pressure
Small and compact design
Fast priming and immediate product flow
Adjustable material flow
Reinforced diaphragms
No product leakage
Low noise level
Less components and reduced maintenance
