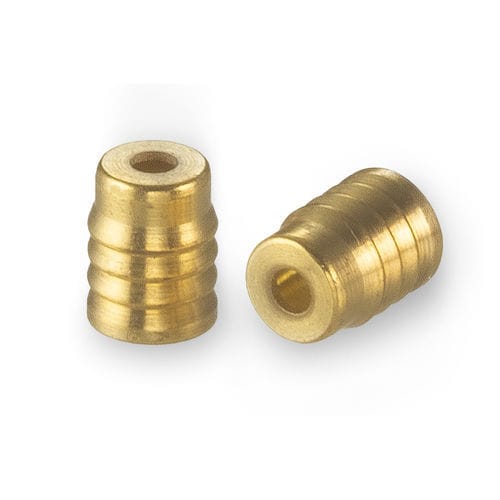

Orifice flow restrictor RPGF2554005S

This threadless, reliable, and highly accurate flow restrictor is specifically designed for installation into plastic housings and fittings. Its unique press-in design provides easy installation that ensures retention and prevents any bypass leakage. The orifice is constructed of brass, providing compatibility with a wide range of gases. It is flow tested on nitrogen with a nominal flow tolerance of ± 5%. Tighter tolerances are available as custom configurations. To increase accuracy, orifices are tested in the direction of use.Mounting Configuration: Press-In - Into PlasticDiameter: 2.54 mmMetered Flow Range: 500 - 45,000 LohmsTest Fluid: Clean & Dry NitrogenMaximum Working Pressure: Dependent on Housing MaterialGeneral PerformanceCharacteristicSpecificationLohm Rate Tolerance± 5%Test FluidClean and Dry NitrogenMaximum Working PressureDependent on Housing Material, Configuration, and Operating ConditionsDesigned for Installation IntoPlastics, Such as Polypropylene, Nylon, Acetal, Polyethylene, and PEEKMaterialsComponentMaterialBodyBrass C36000Part Numbers & SpecificationsPart NumberFlow DirectionLohm RateApproximate Weight (g)Installation Hole Drawing NumberRPGF2554005SForward500 Lohms0.081INST005724SRPGF2554006SForward600 Lohms0.081INST005724SRPGF2554008SForward800 Lohms0.081INST005724SRPGF2554010SForward1000 Lohms0.081INST005724SRPGF2554012SForward1200 Lohms0.081INST005724SRPGF2554015SForward1500 Lohms0.081INST005724SRPGF2554020SForward2000 Lohms0.081INST005724SRPGF2554025SForward2500 Lohms0.081INST005724SRPGF2554030SForward3000 Lohms0.081INST005724SRPGF2554040SForward4000 Lohms0.081INST005724SRPGF2554050SForward5000 Lohms0.081INST005724SRPGF2554060SForward6000 Lohms0.081INST005724SRPGF2554080SForward8000 Lohms0.081INST005724SRPGF2554100SForward10,000 Lohms0.081INST005724SRPGF2554120SForward12,000 Lohms0.081INST005724SRPGF2554150SForward15,000 Lohms0.081INST005724SRPGF2554200SForward20,000 Lohms0.081INST005724SRPGF2554250SForward25,000 Lohms0.081INST005724SRPGF2554300SForward30,000 Lohms0.081INST005724SRPGF2554400SForward40,000 Lohms0.081INST005724SRPGF2554450SForward45,000 Lohms0.081INST005724SRPGR2554005SReverse500 Lohms0.081INST005724SRPGR2554006SReverse600 Lohms0.081INST005724SRPGR2554008SReverse800 Lohms0.081INST005724SRPGR2554010SReverse1000 Lohms0.081INST005724SRPGR2554012SReverse1200 Lohms0.081INST005724SRPGR2554015SReverse1500 Lohms0.081INST005724SRPGR2554020SReverse2000 Lohms0.081INST005724SRPGR2554025SReverse2500 Lohms0.081INST005724SRPGR2554030SReverse3000 Lohms0.081INST005724SRPGR2554040SReverse4000 Lohms0.081INST005724SRPGR2554050SReverse5000 Lohms0.081INST005724SRPGR2554060SReverse6000 Lohms0.081INST005724SRPGR2554080SReverse8000 Lohms0.081INST005724SRPGR2554100SReverse10,000 Lohms0.081INST005724SRPGR2554120SReverse12,000 Lohms0.081INST005724SRPGR2554150SReverse15,000 Lohms0.081INST005724SRPGR2554200SReverse20,000 Lohms0.081INST005724SRPGR2554250SReverse25,000 Lohms0.081INST005724SRPGR2554300SReverse30,000 Lohms0.081INST005724SRPGR2554400SReverse40,000 Lohms0.081INST005724SRPGR2554450SReverse45,000 Lohms0.081INST005724SInstallation Procedure: 2.5 mm Press-In Orifice Installation Procedure (see product page for details)Installation Tool Drawing Number: CCRT0029354SCAD Envelopes: Forward and Reverse 2.5 mm 316 Stainless Steel Press-In Single-Orifice Restrictor for Gases Model (see product page for details)For More Information: Industrial MicroHydraulics Handbook of Automotive and Industrial Solutions Page B19-B20, B25Companion Product: For a companion 2.5 mm safety screen filter, click here.Key Product FactsMounting Configuration: Press-In - Into PlasticDiameter: 2.54 mmMetered Flow Range: 500 - 45,000 LohmsTest Fluid: Clean & Dry NitrogenMaximum Working Pressure: Dependent on Housing MaterialSpecifications / Technical CharacteristicsBody Material: Brass C36000Lohm Rate Tolerance: ± 5%Designed for Installation Into: Plastics (Polypropylene, Nylon, Acetal, Polyethylene, PEEK)Approximate Weight: 0.08 gInstallation Hole Drawing Number: 1INST005724S
