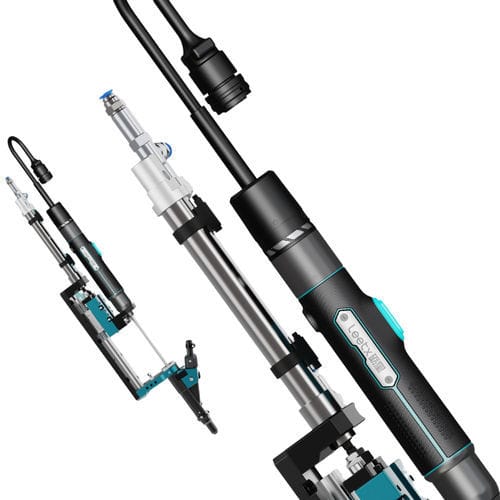

Automatic tightening module ASG

robotizedautomatedfor screw assembly

Product overview
Automatic screw feeding module that delivers screws to the tool head for immediate fastening. Includes air-loss fall prevention and fast troubleshooting procedures. Suitable for four main operating conditions and compatible with multiple screw formats.

Key highlights

• Compact design
• Lightweight
• Cost-efficient integration
• Rapid troubleshooting

Product features & advantages

• Suitable for a wide range of applications
• Compact center-to-center distance for dense assemblies
• Lightweight construction for easy integration with cylinders, actuators and multi-axis robots
• Optimized automation and cycle time for quick tightening
• Full-stroke screw guidance for stable delivery
• Consistent operational performance

Structure
Illustrative diagrams show internal and external assembly, component layout and mounting interfaces to aid integration and maintenance.

Application condition
Images and diagrams indicate recommended installation orientations, operating positions and environmental considerations for reliable operation.

System framework
Diagrams illustrate integration points with feeding hoppers, actuators and tightening tools for automated screw feeding and fastening workflows.

Related modules / models

• ASG
• AIV-AT
• AOV
• APP
• APP-Q

Related applications

• Motor vehicle
• Auto parts
• Motor control
• Power battery
• Consumer electronics
• White goods

Technical specifications

• Brand: Leetx
• Model / Denomination: ASG
• Function: Automatic screw delivery to tool head for immediate fastening with air-loss fall prevention
• Compatible screw types: 7 types
• Maximum screw head diameter: 14 mm
• Working / applicable conditions: 4 main scenarios
• Advantages: compact center-to-center distance; lightweight; full-stroke screw guidance for high stability; optimized cycle time
• Integration: Designed for integration with cylinders, actuators, multi-axis robots and tightening tools
