Screw feeding unit

for parts assemblystepelectronic equipment

Overview

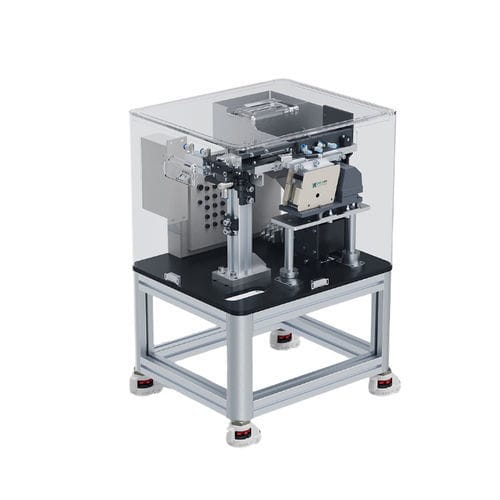

Step feeder feeding units use low-amplitude, short-cycle agitation to transport screws gently, preserving surface coatings and pre-applied threadlockers. They are commonly used where high cleanliness and minimal handling impact are required, for example in battery, motor and electronics assembly lines.

Main functions / highlights

• Step lifting for precise part indexing
• Protection of coated or adhesive-applied screws
• Clean, low-contamination feeding suitable for PCBA and sensitive assemblies
• Stable and reliable continuous operation

Key performance indicators

• Screw feeding rate: 59 pcs/min
• Maximum operational noise: 64 dB
• Maximum screw length accommodated: 25 mm

Product features & advantages

• Designed for high cleanliness scenarios — minimizes dust and contamination.
• Gentle handling to protect coated surfaces or adhesive layers on screws.
• Low vibration amplitude reduces risk of damage compared with vibratory bowls.
• Noise-optimized construction (literature reports values as low as 65 dB in optimized conditions).
• Integrated screw counter for quantity monitoring and process control.
• High output efficiency — stated screw output up to 60 pcs/min under specified conditions.
• Multiple escapement designs available to accommodate varied screw types.
• Durable, wear-resistant components for extended service life.
• Low jamming rate to support uninterrupted automated feeding lines.

Workflow
Illustrated schematics show the step-feeder feeding flow and interaction points with downstream tightening or assembly equipment, enabling simple integration into automated production cells.

System framework
Presented as a modular element within an automatic screw feeding system, with diagrams indicating mechanical interfaces, signal and pneumatic connections for integration with feeding lines and tightening modules.

Related applications

• Automotive powertrain assembly
• Automotive components
• Motor control units
• Power battery assembly
• Consumer electronics
• Construction machinery
• White goods manufacturing

Technical specifications

• Screw feeding rate: 59 pcs/min
• Maximum operational noise: 64 dB
• Maximum screw length: 25 mm
• Screw output efficiency (stated): up to 60 pcs/min
• Noise-optimized design (literature reports as low as 65 dB in optimized conditions)
• Protection for coated or adhesive-coated screws
• Various escapement designs available
• Integrated screw counter for quantity control
• Durable, wear-resistant construction
• Low jamming rate for reliable continuous feeding
