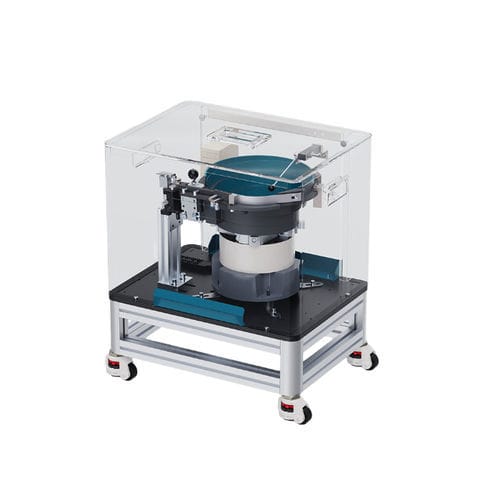

Automatic vibratory bowl

screw

Overview
Vibratory bowl feeders provide a proven feeding mechanism for automated assembly lines. Driven by disk vibration, parts such as screws travel along a helical track for precise feeding and orientation. The design emphasizes simple mechanics, long service life and adaptability to a wide range of components.

Key highlights

• Disk vibration drive
• High adaptability to component shapes and sizes
• Low-noise operation
• Wear-resistant construction

Performance indicators

• Screw extrusion efficiency: 59 pcs/min (displayed metric)
• Maximum operational noise: 64 dB (displayed metric)
• Supported maximum screw diameter: 24 mm

Product features & advantages

• Noise control optimization — typical optimized noise levels around 65 dB
• Integrated screw counter for quantity control
• High throughput — screw output efficiency up to 60 pcs/min
• Multiple escapement designs to suit varied screw geometries
• Low jamming rate for stable operation
• Polymer-composite integrated tray for ultra-high consistency

Related applications

• Automotive assembly
• Auto parts manufacturing
• Motor control modules
• Power battery assembly
• Consumer electronics assembly
• Construction machinery components
• White goods production

Technical specifications

• Type: Feeding Unit - Bowl Feeder (vibratory bowl feeder)
• Drive method: Disk vibration (vibratory)
• Screw extrusion efficiency: 59 pcs/min (page metric) — output efficiency up to 60 pcs/min
• Operational noise (typ./max): metrics shown include 64 dB (max) and references to optimized noise levels around 65 dB
• Maximum supported screw diameter: 24 mm
• Features: noise control optimization, screw counter (quantity control), various escapement designs, low jamming rate, polymer-composite integrated tray
• Applications: automotive OEMs, auto parts, motor control, power battery, consumer electronics, construction machinery, white goods
