Nut tightening module APP

automatedmodularvacuum

Product overview

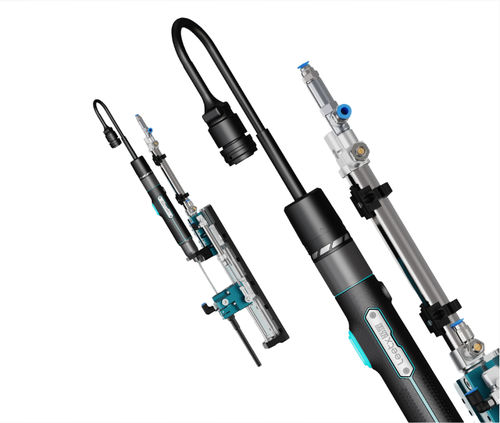

APP series actuators use vacuum tubes to pick up screws and nuts at defined positions. They are intended for applications where blow-feed is not feasible or for fasteners that cannot be blow-fed.

Key features

• Vacuum-tube pickup for screws and nuts
• Floating design for alignment tolerance
• Compatible with inner-drive and outer-drive screw types
• Multiple actuator variants for different pick-and-place/feed needs
• Low operating cost

Product highlights

• Compatible with 4 inner-drive screw types
• Compatible with 3 outer-drive screw types
• Max. vacuum tube stick-out stroke: 198 mm
• Variants to suit different feeding and placement requirements

Structure

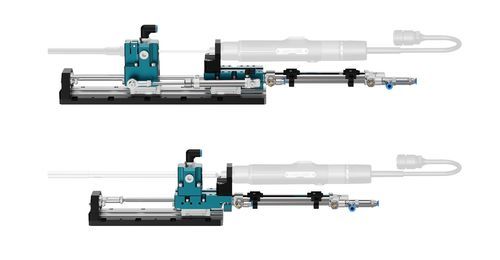

Illustrations and component layouts show vacuum tube routing, mounting interfaces and the floating mechanism that provides alignment compensation.

Application condition
Designed for use where vacuum pickup is required for screws and nuts, particularly when blow-feed is not applicable or for non-blow-feedable fasteners.

System framework
The module integrates into automatic screw feeding and tightening systems as part of a modular framework supporting pick & place, feeding hoppers and tightening modules.

Related applications

• Motor vehicle assembly
• Auto parts production
• Power battery assembly
• Consumer electronics
• White goods / home appliances

Available variants / series

• APP
• ASG
• AIV-AT
• AOV
• APP-Q

Caractéristiques / spécifications techniques

• Series: APP
• Pickup method: Vacuum tube pickup for screws and nuts
• Suitable for inner-drive and outer-drive screw types
• Compatible screw types: inner-drive (4 types), outer-drive (3 types)
• Max. vacuum tube stick-out stroke: 198 mm
• Design features: floating design for alignment tolerance and compatibility with interference conditions
• Typical integration: automatic screw feeding systems and tightening modules
