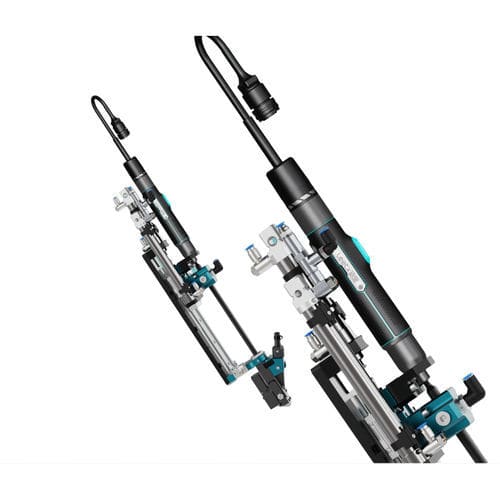

Robotized tightening module AOVautomatedvacuumfor screw assembly
Add to favorites
Compare this product
Characteristics
- Operating mode
- automated, robotized, vacuum
- Applications
- for screw assembly, for the electronics industry
- Power supply
- pneumatic
- Other characteristics
- with automatic feed, integrated module
Description
Overview
The AOV external-drive vacuum module blow-feeds screws to the tool-head assembly. A sleeve vacuum-suction system holds and delivers aligned screws to the workpiece surface. The radial floating mechanism actively re-centers after external interference and compensates for eccentricity during insertion and tightening.
Key functions highlighted
Product features & advantages
Structure / System framework / Application conditions
Illustrations of structure, system framework and application conditions are provided for reference. The module integrates a mechanical radial floating structure, vacuum sleeve feed and tool-head interface. It is intended for integration into automated fastening lines and robotic or tool-head feed systems in production environments; consult product page for detailed operating conditions.
Related applications
Technical specifications
The AOV external-drive vacuum module blow-feeds screws to the tool-head assembly. A sleeve vacuum-suction system holds and delivers aligned screws to the workpiece surface. The radial floating mechanism actively re-centers after external interference and compensates for eccentricity during insertion and tightening.
Key functions highlighted
- Screw alignment assistance
- Vacuum adsorption for secure pick-up
- Tolerance to obstructions during feed
- Radial floating for eccentricity compensation
- Quick troubleshooting and recovery
Product features & advantages
- Floating design: adapts to moderate eccentricity at hole entry and during tightening; automatically re-centers after external disturbances to maintain accurate feeding.
- Adjustable down force: setting allows adaptation to different screw types and tightening requirements.
- Suction detection: monitors vacuum status to ensure reliable pick-up and reduce feeding errors.
- Obstruction tolerance: continues operation or enables fast recovery in case of minor feed blockages.
Structure / System framework / Application conditions
Illustrations of structure, system framework and application conditions are provided for reference. The module integrates a mechanical radial floating structure, vacuum sleeve feed and tool-head interface. It is intended for integration into automated fastening lines and robotic or tool-head feed systems in production environments; consult product page for detailed operating conditions.
Related applications
- Motor vehicle
- Auto parts
- Motor control
- Power battery
- Consumer electronics
- White goods
Technical specifications
- Model / Series: AOV
- Feeding method: Blow-feed with sleeve vacuum-suction
- Floating mechanism: Radial floating to compensate eccentricity
- Screw types supported: 3 screw types
- Maximum outer diameter of screws: 14 mm
- Working conditions: 2 (as indicated on product page)
- Key functions: screw alignment assistance, vacuum adsorption, obstruction tolerance, radial floating, quick troubleshooting
