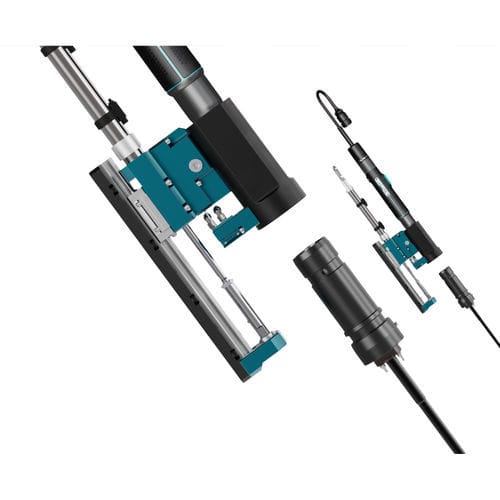

Automatic tightening module APP-Q

modularfor screw assemblyfor the electronics industry

Product overview
APP-Q series is designed for single-station fastening operations requiring flexible screw handling. Its automatic quick-change head allows one tightening tool set to process multiple screw specifications without manual tool swap.

Key features & advantages

• Quick head exchange for reduced downtime
• Compatible with a wide range of screw types
• High operational efficiency for single-station assembly
• Multi-purpose use across fastening tasks
• Quick-change head module for rapid configuration
• High compatibility with standard fastening systems

Performance & dimensions
Compatible with 7 screw types
Maximum screw outer diameter: 8 mm
Extension length of station: 198 mm

QEAV kit
The QEAV kit includes a quick exchange base and a quick exchange head, intended to be used with the APP-Q for rapid head swaps.

Related applications

• Motor vehicles
• Automotive parts
• Motor control systems
• Power battery assembly
• Consumer electronics
• White goods

System framework & structure
System framework and structural illustrations are supplied to assist integration and installation planning.

Technical specifications

• Model: APP-Q
• Product type: Quick-Change Vacuum Pick & Place Module
• Quick-change head: Yes (automatic head exchanging)
• Compatible screw types: 7 types
• Maximum screw outer diameter: 8 mm
• Extension length of station: 198 mm
• QEAV kit: quick exchange base + quick exchange head (used with APP-Q)
• Typical applications: single-station tightening tasks across automotive, motor control, power battery, consumer electronics and white goods
