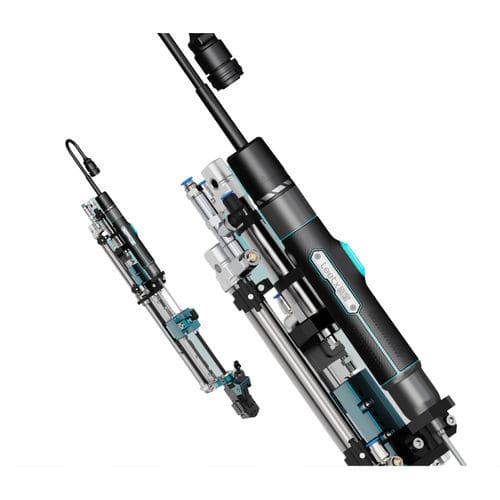

Automated tightening module AIV-ATvacuumfor screw assemblypneumatic
Add to favorites
Compare this product
Characteristics
- Operating mode
- automated, vacuum
- Applications
- for screw assembly
- Power supply
- pneumatic
- Other characteristics
- automatic feed, integrated module
Description
Product Overview
Blow-feed screw feeding to the tool head assembly combined with a vacuum tube that secures and presents each screw to the workpiece. Designed to prevent screw drop and enable rapid troubleshooting in obstruction-prone orientations (360° and 90°). Suitable for high-accessibility fastening in constrained assembly areas.
Main Capabilities
Design & Operation
The vacuum tube diameter is selectable to match screw head dimensions for optimal sealing and presentation. A blow-feed mechanism transports screws to the tool head assembly where the vacuum tube secures and presents the screw to the workpiece surface. The module supports adjustable downward force and includes suction detection to verify pick-up. Engineered for reliable operation in both 360° and 90° obstruction-prone configurations.
Applications & Suitable Conditions
Engineered for obstruction-prone scenarios and tight access points. Typical applications: motor vehicle assembly, automotive components, motor control modules, power battery assembly, consumer electronics and white goods. Recommended where screw drop prevention and dependable pick-up verification are required.
Related Models / Series
Technical Specifications
Blow-feed screw feeding to the tool head assembly combined with a vacuum tube that secures and presents each screw to the workpiece. Designed to prevent screw drop and enable rapid troubleshooting in obstruction-prone orientations (360° and 90°). Suitable for high-accessibility fastening in constrained assembly areas.
Main Capabilities
- Active gripping to secure screws during delivery and presentation
- Vacuum suction pickup and retention for reliable screw handling
- High accessibility for tight or obstructed fastening points
- Adjustable downward force to match assembly requirements
- Suction detection for presence confirmation and process monitoring
- Quick troubleshooting features to reduce downtime
Design & Operation
The vacuum tube diameter is selectable to match screw head dimensions for optimal sealing and presentation. A blow-feed mechanism transports screws to the tool head assembly where the vacuum tube secures and presents the screw to the workpiece surface. The module supports adjustable downward force and includes suction detection to verify pick-up. Engineered for reliable operation in both 360° and 90° obstruction-prone configurations.
Applications & Suitable Conditions
Engineered for obstruction-prone scenarios and tight access points. Typical applications: motor vehicle assembly, automotive components, motor control modules, power battery assembly, consumer electronics and white goods. Recommended where screw drop prevention and dependable pick-up verification are required.
Related Models / Series
- AIV-AT
- ASG
- AOV
- APP
- APP-Q
Technical Specifications
- Model: AIV-AT
- Commercial name: Internal Drive Vacuum Module
- Feeding method: Blow-feed to tool head assembly with vacuum tube pickup
- Key features: screw drop prevention; quick troubleshooting; active gripping; vacuum suction; high accessibility
- Compatible screw types: 4 screw types
- Max. screw head diameter: 14 mm
- Adjustable downward force: Yes
- Suction detection: Yes
- Designed for: 360° and 90° obstruction-prone scenarios
- Related series/models: AIV-AT, ASG, AOV, APP, APP-Q
