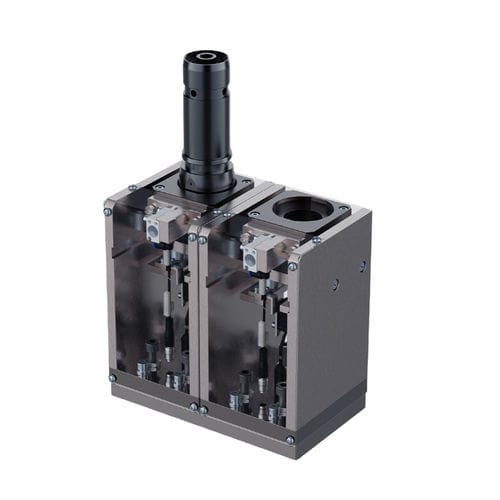

Complete quick change system QEAV

flexiblemodulartool

Overview
QEAV Quick-Change Base, used in conjunction with APP-Q actuators, enables rapid head change capability to adapt a single station to multiple bolt-tightening tasks. The QEAV kit comprises a quick exchange base and a quick exchange head and is designed to increase execution speed, operational efficiency and multi-purpose use in automated assembly lines.

Product features & advantages

• Quick exchange: fast head change to support multiple tooling types at one station
• High execution speed to improve production throughput
• Efficiency: multi-functional use of a single module reduces equipment and tooling costs
• Modular design enabling free combination and expansion
• Compatibility with both internal and external drive screws
• High adaptability to a variety of tightening tasks
• Automatic tooling changeover for rapid process switching
• Wide industrial applicability across components and assemblies

Structure
The QEAV kit consists of a quick exchange base and a quick exchange head designed to be mounted with APP-Q actuators. The modular construction allows quick tooling swaps without relocating the assembly station, minimizing downtime.

Accompanying components
Accompanying components include a range of quick exchange heads and modular attachments compatible with the QEAV base and APP-Q actuators. Detailed component configurations are presented in product documentation and imagery.

System framework
The QEAV quick-change base is intended to integrate into a larger tightening/assembly system together with APP-Q actuators and optional feeding or drive modules to form a complete automated station.

Related applications

• Motor vehicle
• Auto parts
• Motor control
• Power battery
• Consumer electronics
• Energy storage
• Construction machinery
• Photovoltaics (PV)
• Rail transportation
• Aerospace

Technical specifications

• Model: QEAV Quick-Change Base
• Kit composition: quick exchange base + quick exchange head
• Compatible actuator: APP-Q series actuators
• Main function: rapid head/tool change to adapt to multiple bolt-tightening tasks at one station
• Design: modular, supports free combination and expansion
• Screw compatibility: supports internal and external drive screws
• Features: automatic tooling changeover, high execution speed, wide compatibility
• Intended use: multi-purpose tightening modules and accessories for automated assembly lines
