Rogowski coil current transducer MTCR-36-600-MEP

clampsplit-coreflexible

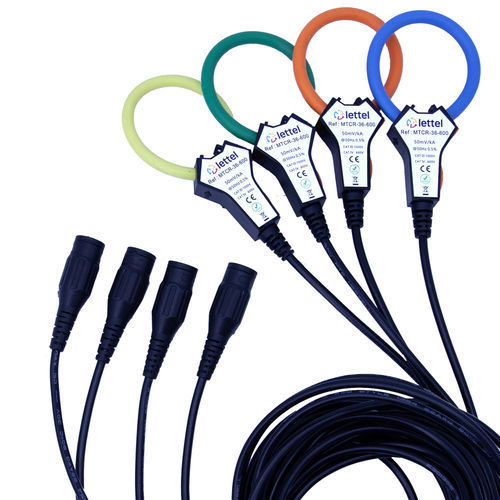

The MTCR Rogowski coils combine precision with ease of integration: - Presentation: Set of 4 Rogowski current sensors in different colors to symbolize each associated conductor: yellow, green, red, and blue. - Electrical: The MTCR-24-600-MEP Rogowski measuring coil measures a current range up to 600A. - Physical: Coil length 130 mm, opening Ø 36 mm. Mounting on conductor with provided cable tie. Wire outputs length 2.5 m. IP67 protection. Connector for connection to MEP-1 analyzer. - Precision: Class 0.5% over the entire scale. - Integration: Thanks to their openable core, the installation of current sensors is possible without disconnecting power cables. Their flexibility allows easy installation in a confined or hard-to-reach space. - Safety: mV output thus no heating or risk of overcurrent. - Compliances: CE, RoHS, REACh. - Applicable standards: EN61010-1:2010, EN61326-1:2013 - Associated products: Compatible with the portable network analyzer MEP-1. Characteristics / Technical Specifications: - Type: Openable and flexible Rogowski coil - Maximum current: 600A - Opening diameter: 36 mm - Coil length: 130 mm - Precision: 0.5% - Protection: IP67 - Wire length: 2.5 m - Mounting: Provided cable tie - Connector: For MEP-1 analyzer - Compliances: CE, RoHS, REACh - Standards: EN61010-1:2010, EN61326-1:2013 - Set: 4 sensors in different colors (yellow, green, red, blue)
