Rogowski coil current sensor MTCR-100-1000-MEP

flexiblecompactsplit-core

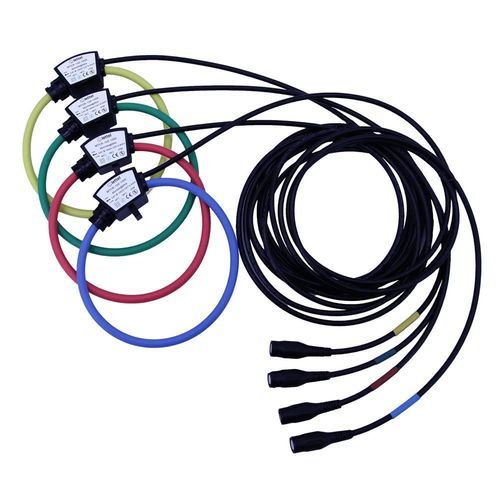

The MTCR Rogowski loops combine precision with ease of integration: - Presentation: Set of 4 Rogowski current sensors in different colors to symbolize each associated conductor: yellow, green, red, and blue. - Electrical: The MTCR-100-1000-MEP Rogowski measuring loop measures a current range up to 1000A. - Physical: Loop length 395 mm, opening Ø 100 mm. Mounting on bar or cable type conductor using the supplied cable tie or mounting accessories. Wire outputs length 2 m. IP68 protection. Connector for connection to MEP-1 analyzer. - Precision: Class 0.5% over the entire scale. - Integration: Thanks to their opening core, the installation of current sensors is possible without disconnecting power cables. Their flexibility allows easy installation in a confined or hard-to-reach space. - Safety: mV output thus no heating or risk of overcurrent. - Compliances: CE, RoHS, REACh. - Applicable standards: EN61010-1:2010, EN61326-1:2013 - Technical papers: Current transformers - Articles: Portable three-phase network analyzer MEP-1 - Compatibility: Compatible with the portable network analyzer MEP-1
