Rogowski coil current transducer MTCR-200-6000-MEP

clampsplit-coreflexible

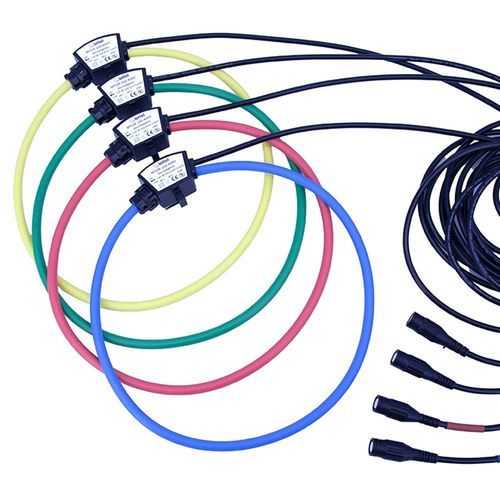

The MTCR Rogowski coils combine precision with ease of integration: - Presentation: Set of 4 Rogowski current sensors in different colors to symbolize each associated conductor: yellow, green, red, and blue. - Electrical: The MTCR-200-6000-MEP Rogowski measuring coil measures a current range up to 6000A. - Physical: Loop length 665 mm, opening Ø 200 mm. Mounting on bar or cable type conductor using the provided cable tie or mounting accessories. Output wires length 2 m. IP68 protection. Connector for connection to MEP-1 analyzer. - Precision: Class 0.5% over the entire scale. - Integration: Thanks to their openable core, the installation of current loops is possible without disconnecting power cables. Their flexibility allows easy installation in a confined or hard-to-reach space. - Safety: mV output thus no heating or risk of overcurrent. - Compliances: CE, RoHS, REACh. - Applicable standards: EN61010-1:2010, EN61326-1:2013 - Technical papers: Current transformers - Articles: Portable network analyzer MEP-1 - Compatible with the portable network analyzer MEP-1: Access the product page Characteristics / Technical Specifications: - Type: Rogowski current sensor - Maximum current: 6000A - Opening diameter: 200 mm - Loop length: 665 mm - Precision: 0.5% - Protection: IP68 - Output wire length: 2 m - Number of sensors per set: 4 (yellow, green, red, blue) - Connector: For MEP-1 analyzer - Compliances: CE, RoHS, REACh - Standards: EN61010-1:2010, EN61326-1:2013
