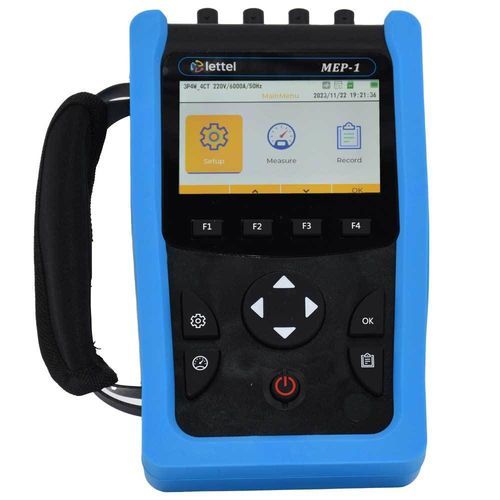

Three-phase power meter MEP-1

USB

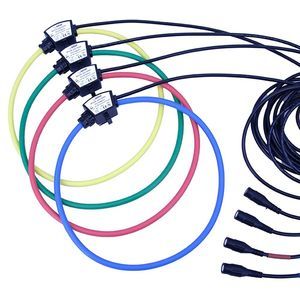

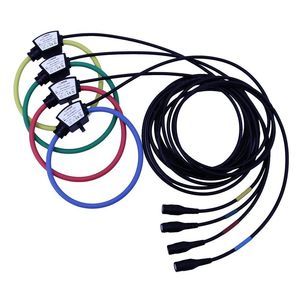

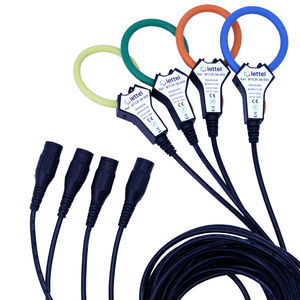

Main features of the MEP-1 three-phase circuit analyzer: - Presentation: MEP-1 is a measurement center allowing complete analysis of an electrical circuit. Voltage measurements with crocodile clips and current measurements with opening and flexible sensors allow deployment without any intervention on the installation or power cut. Its ease of integration and advanced features such as data recording and integrated TCP/IP communication make it the ideal tool for performing temporary energy diagnostics. - Accessories provided: Includes a compartmentalized case containing: – Portable network analyzer MEP-1 – 5 voltage lead cords 3m long – 5 crocodile clips – 5 magnetic tips for voltage measurement – 1 RJ45 cord 1m long – Mains charging plug – USB type A key for data export – Strap with magnetic pad to attach the MEP-1 to a metal electrical cabinet wall. - Power supply: Rechargeable lithium battery with mains plug provided. - Current measurement: By opening and flexible current sensors of Rogowski loop type to be ordered separately. 4 different ranges depending on the current range measured and conductor dimensions. - Voltage measurement: Direct with cords whose end can be equipped with a crocodile clip for attachment to the conductor or a magnetic tip to be positioned on a circuit breaker screw. It is also possible to connect voltage transformers whose ratio is programmable. - Interface: 4-inch color TFT screen for displaying data in bar graphs, sinusoidal waves, or phase diagrams. Simple and intuitive menu available in multiple languages. - Measured data: Active and reactive energies, imported and exported, by phase and total. Instantaneous values: voltages, current, power factor, frequency, demands, etc. Recording of minimum and maximum values, averages. Quality metrics: phase angles, adjustable event thresholds, imbalances, harmonics up to the 50th order, calculation of crest factor coefficients, current K factor, etc. - Data Logger function: 32GB internal memory for data recording with adjustable sampling frequency. Data can be exported in CSV format via the USB port. - Communication: Modbus TCP/IP on Ethernet port. - Ease of installation: Current and voltage sensors allow circuit measurement without any intervention on the electrical installation. This non-intrusive solution is ideal for performing temporary energy audits. - Data clarity: The screen allows instant analysis of interfaced data. - Precision: Accuracy class 0.2% for voltage and current, 0.5% for active energy, and 1% for reactive energy. - Standards and certifications: EN61010-1:2010+A1:2019 EN IEC 61010-2-030:2021+A11:2021 EN IEC 61326-1:2021 - Associated products: Rogowski loops MTCR-x-MEP (to be ordered separately) → MTCR-36-600-MEP → MTCR-100-1000-MEP → MTCR-150-3000-MEP → MTCR-200-6000-MEP - Resources: Portable measurement center MEP-1 - Characteristics / Technical specifications: Model: MEP-1 Power supply: Rechargeable lithium battery Interface: 4-inch color TFT screen Communication: Modbus TCP/IP (Ethernet) Recording: 32GB internal memory, USB export (CSV) Precision: 0.2% (voltage/current), 0.5% (active energy), 1% (reactive energy) Standards: EN61010-1:2010+A1:2019, EN IEC 61010-2-030:2021+A11:2021, EN IEC 61326-1:2021 Included accessories: Case, cords, crocodile clips, magnetic tips, RJ45, mains plug, USB key, magnetic strap Rogowski current sensors to be ordered separately
