Rogowski coil current sensor MTCR-150-3000-MEP

clampanalogsplit-core

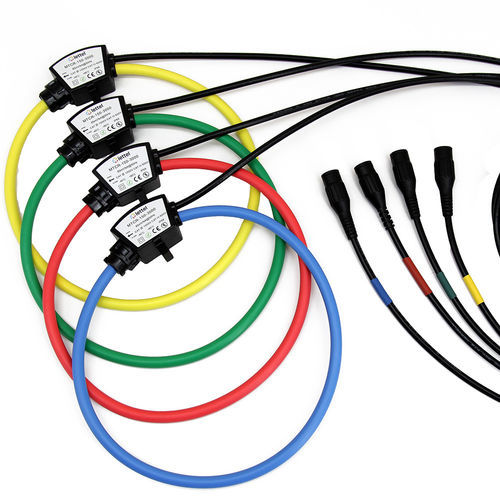

The MTCR Rogowski loops combine precision with ease of integration: - Presentation: Set of 4 Rogowski current sensors in different colors to symbolize each associated conductor: yellow, green, red, and blue. - Electrical: The MTCR-150-3000-MEP Rogowski measuring loop measures a current range up to 3000A. - Physical: Loop length 525 mm, opening Ø 150 mm. Mounting on bar or cable type conductor using the supplied cable tie or mounting accessories. Output wires length 2 m. IP68 protection. Connector for connection to MEP-1 analyzer. - Precision: Class 0.5% across the entire scale. - Integration: Thanks to their opening core, the installation of current sensors is possible without disconnecting power cables. Their flexibility allows easy installation in a confined or hard-to-reach space. - Safety: mV output thus no heating or risk of overcurrent. - Compliances: CE, RoHS, REACh. - Applicable standards: EN61010-1:2010, EN61326-1:2013 - Technical documents: Current transformers - Articles: Portable three-phase network analyzer MEP-1 - Compatible with the portable network analyzer MEP-1: Access the product page Technical Characteristics / Specifications: - Type: Set of 4 Rogowski current sensors - Maximum current: 3000A - Opening: Ø 150 mm - Loop length: 525 mm - Precision: Class 0.5% - Protection: IP68 - Output wire length: 2 m - Connector: For MEP-1 analyzer - Compliances: CE, RoHS, REACh - Standards: EN61010-1:2010, EN61326-1:2013 - Mounting: On bar or cable, cable tie provided - Output: mV (no heating, no risk of overcurrent) - Sensor colors: yellow, green, red, blue
