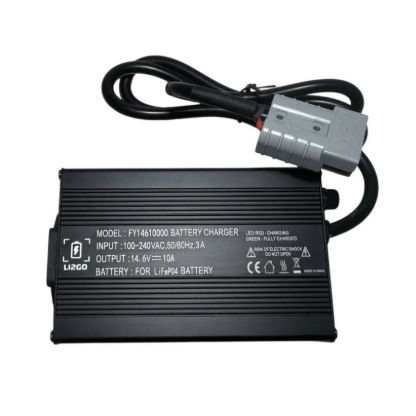

Electric vehicle battery charger 36630

desktopLi-ionLiFePO4

Description Charger for LiFePO4 lithium batteries with an aluminum housing and advanced cooling system, designed to deliver efficient, safe and stable charging for industrial and professional applications.

Summary

• Compatible with 12V LiFePO4 batteries with full-charge voltage at 14.6V.
• Constant charge current: 10A.
• Aluminum finish and advanced cooling for improved durability and heat dissipation.
• Comprehensive protections: overcharge, short circuit, overvoltage and reverse polarity.

Additional information (table) Weight: 1 kg
Dimensions: 15 × 10 × 6 cm
Battery nominal voltage: 12V
Current: 10A
Brand: Li2GO

Technical features and operation

• Output voltage: 14.6V.
• Input voltage: 100-240 V AC.
• Output current: 10A.
• Output power: 146W.
• Charging technology: LiFePO4 (specific charging profile for LiFePO4 chemistry with final voltage 14.6V).
• Construction material: aluminum body for improved mechanical strength and thermal dissipation.
• Cooling system: advanced cooling (ventilation and/or integrated heatsinks) to operate at optimal temperatures and prevent overheating.
• Protections: against overcharge, short circuit, overvoltage and reverse polarity.
• LED indicators: charge status and fault diagnostics.
• Energy efficiency: > 90% and low standby consumption.

Compatibility and applications

• Compatible with a wide range of batteries and equipment operating at 14.6V (12V LiFePO4 at full charge).
• Typical applications: portable medical devices, fishing equipment, industrial power tools, telecommunications equipment, light electric vehicles, backup power systems and other professional uses requiring safe and stable LiFePO4 charging.

Package contents

• Li-ion battery charger.
• Mains power cable (220V).
• Output connector: Anderson 50A (configurable on request).
• User manual and warranty information.

Connector configuration

• Output connector can be configured at order time; common options: XLR, XT30, XT60, XT90, Anderson 50A, etc.

Technical specifications

• Output voltage: 14.6V
• Input voltage: 100-240 V AC
• Output current: 10A
• Output power: 146W
• Charging technology: LiFePO4
• Material / finish: aluminum
• Weight: 1 kg
• Dimensions: 15 × 10 × 6 cm
• Indicators: LED for status and diagnostics
• Protections: overcharge, short circuit, overvoltage, reverse polarity
• Efficiency: > 90%
• Connector included: Anderson 50A (configurable)
