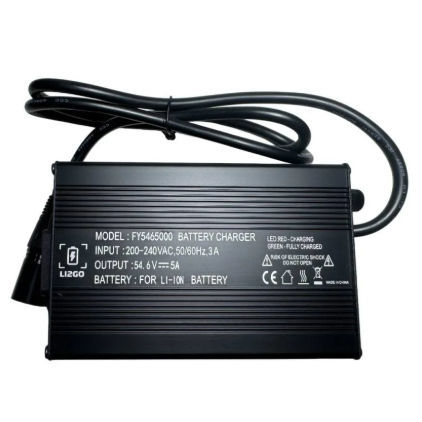

Electric vehicle battery charger 36916

for electric toolsdesktoplithium

Description
Compact lithium battery charger for industrial and professional applications. Aluminium housing and advanced cooling system provide stable operation under continuous use. CC-CV charging adapts to the Li-ion / Li-Po charge curve. Compatible with 48V nominal battery packs (13S).

Main features

• Output voltage: 54.6V
• Output current: 5A
• Output power: 273W
• Input voltage: 100-240 VAC
• Supported battery chemistries: Li-Ion, Li-Po
• Aluminium housing for improved heat dissipation
• Advanced cooling: silent fans and/or integrated heatsinks
• Protections: overcharge, short circuit, overvoltage, reverse polarity
• LED indicators for charge status and fault diagnostics
• High energy efficiency (> 90%)

Applications

• Portable medical devices
• Fishing equipment
• Industrial power tools
• Telecommunication equipment
• Light electric vehicles
• Backup power systems
• Any 48V nominal battery (54.6V at full charge)

Package contents

• Lithium battery charger
• AC mains cable (220V)
• Charging connector: XLR (other options available)
• User manual and warranty information

Additional information
Weight: 0.8 kg
Dimensions: 14 × 9 × 5 cm
Battery nominal voltage: 48V
Output current: 5A
Brand: Li2GO

Technical specifications

• Output: 54.6V DC
• Input: 100-240 VAC
• Output current: 5A
• Output power: 273W
• Compatible technologies: Li-Ion, Li-Po
• Material: aluminium housing
• Cooling system: fans and/or integrated heatsinks
• Integrated protections: overcharge, short circuit, overvoltage, reverse polarity
• Indicators: LEDs for charge status and diagnostics
• Efficiency: > 90%
• Available connectors: XLR, XT30, XT60, XT90, Anderson 50A, DC2.1, DC2.5
• Weight: 0.8 kg
• Dimensions: 14 × 9 × 5 cm
