Electric vehicle battery charger 36680

desktoplithiumCE

Description

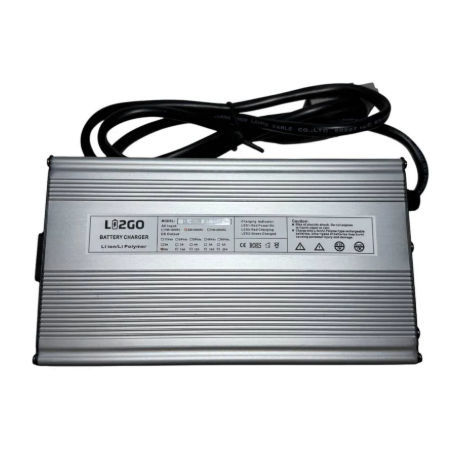

The Li2GO lithium battery charger, with aluminum housing and advanced cooling system, is designed to deliver efficient, safe and reliable charging in professional and industrial environments. Below are its main specifications and features.

Technical features (summary)

• Output voltage: 67.2V
• Input voltage: 100-240V AC
• Output current: 8A
• Output power: 538W
• Charging technology: Li-Ion / Li-Po

Material and design
Aluminum housing providing durability and effective heat dissipation.

• Durability: high resistance to shocks and drops, extending equipment service life.
• Effective heat dissipation: aluminum acts as a good heat conductor, helping to maintain stable operating temperature.

Cooling system
High-performance advanced cooling composed of quiet fans and/or integrated heatsinks ensuring operation at optimal temperatures, preventing overheating and improving performance and safety.

Safety and protection

• Overcharge protection: integrated systems that prevent battery overcharging.
• Short-circuit protection: protects both charger and battery against electrical faults.
• Overvoltage protection: ensures the battery always receives correct voltage.
• Reverse polarity protection: charger self-protects in case of incorrect connection.

Indicators

• Charge status: LED indicators that clearly show charging progress.
• Fault detection: visual indicators for any issue during charging.

Compatibility
Universal use: compatible with a wide range of devices and batteries operating at 67.2V, offering versatility in industrial applications. Compatible with any battery with nominal voltage 60V (67.2V at full charge).

Energy efficiency

• Reduced consumption: optimized design to minimize energy usage during charging.
• High energy efficiency: efficiency above 90%, eco-friendly.

Applications

• Portable medical devices
• Fishing equipment
• Industrial power tools
• Telecommunication systems
• Light electric vehicles
• Backup power systems

Competitive advantages

• Durability: robust aluminum construction for intensive use.
• Safety: multiple electronic protections for reliable operation.
• Efficiency: stable charging combined with effective cooling system that ensures high performance.

Package contents

• Lithium battery charger
• AC mains power cable 220V
• Anderson 50A charge connector
• User manual and warranty information

Connectors and customization
Yes, the output connector can be configured. Available options: XLR, XT30, XT60, XT90, Anderson 50A, etc.

Additional information (table)
Weight: 1 kg
Dimensions: 15 × 10 × 6 cm
Voltage: 60V (nominal voltage indicated)
Current: 8A
Brand: Li2GO

Features / Technical specifications

• Output voltage: 67.2V
• Input voltage: 100-240V AC
• Output current: 8A
• Output power: 538W
• Charging technology: Li-Ion / Li-Po
• Construction material: aluminum housing
• Weight: 1 kg
• Dimensions: 15 × 10 × 6 cm
• LED indicators: charge status and fault detection
• Energy efficiency: above 90%
• Included charge connector: Anderson 50A (configurable to other types)
• Compatibility: batteries with nominal voltage 60V (67.2V at full charge)
