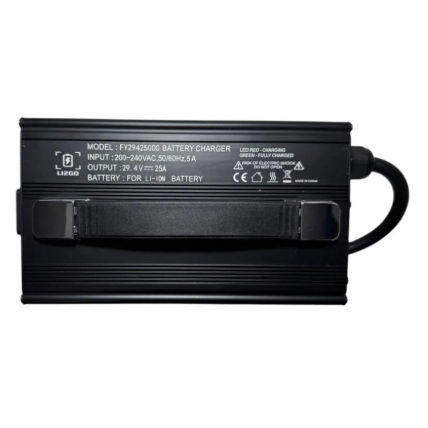

Electric vehicle battery charger 36902

desktoplithiumCE

Summary
Charger 29.4V 25A for Li‑ion batteries, designed for high-speed charging and high‑consumption systems. Aluminum housing provides mechanical protection and effective heat dissipation.

Description
The Li2GO lithium battery charger with aluminum finish and advanced cooling system is engineered to deliver efficient, safe and durable charging for industrial and professional applications. Compatible with 24V marine battery ranges and other 29.4V systems.

Technical features

• Output voltage: 29.4V
• Input voltage: 100-240 VAC
• Output current: 25A
• Output power: 735W
• Battery chemistry: Li‑Ion / Li‑PO
• Construction material: aluminum finish
  • Durability: resistance to shocks and drops to extend charger life
  • Heat dissipation: aluminum improves thermal conduction to control device temperature
• Cooling system:
  • Advanced cooling including quiet fans and/or integrated heatsinks to prevent overheating
• Safety and protection:
  • Overload protection
  • Short-circuit protection
  • Overvoltage protection
  • Reverse polarity protection
• LED indicators:
  • Charge status indicators
  • Fault diagnostics indicators
• Compatibility: compatible with a wide range of devices and batteries operating at 29.4V (nominal 25.2V), including Li2GO 24V marine batteries
• Energy efficiency: > 90% for low power consumption

Applications

• Portable medical devices
• Fishing equipment
• Industrial power tools
• Telecommunications equipment
• Light electric vehicles
• Backup power systems
• Any battery with nominal voltage 25.2V (29.4V at full charge)

Package contents

• Li2GO lithium battery charger
• AC power cable for 220V connection
• Charging connector: Anderson (connector option configurable at order)
• User manual and warranty information

Notes
Output connector can be configured (e.g. XLR, XT30, XT60, XT90, Anderson 50A, DC2.1, DC2.5, etc.) by specifying connector type when placing the order.

Technical specifications

• Weight: 1.5 kg
• Dimensions: 21 × 12 × 7 cm
• Nominal output voltage: 29.4V
• Input voltage: 100-240 VAC
• Output current: 25A
• Output power: 735W
• Technology: Li‑Ion / Li‑PO
• Brand: Li2GO
• Efficiency: > 90%
