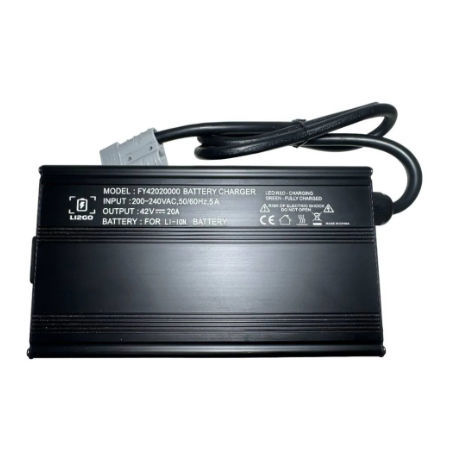

Electric vehicle battery charger 36914

desktoplithiumCE

Brief description
Industrial 42V 20A lithium battery charger with aluminum housing. Suitable for continuous use, with overload protection and temperature control.

Extended description
The Li2GO lithium battery charger features an aluminum enclosure and an advanced cooling system, engineered to deliver efficient, safe and long-lasting charging for industrial and professional applications. Compatible with Li-Ion and Li-Po batteries with a 36V nominal voltage and a 42V full-charge voltage. The unit integrates multiple protections and LED diagnostics for reliable operation in demanding environments.

Technical features (summary)

• Output voltage: 42V
• Input voltage: 100-240 VAC
• Output current: 20A
• Output power: 840W
• Charging technology: Li-Ion / Li-Po
• Material: Aluminum housing
• Cooling system: Advanced cooling (silent fans and/or integrated heatsinks)
• Protections: Overload, short-circuit, overvoltage and reverse polarity protection
• LED indicators: Charge status and fault diagnostics
• Compatibility: Universal with batteries operating at 42V (36V nominal, 42V at full charge)
• Efficiency: > 90% (low consumption)

Additional information (table)
Weight: 1.5 kg
Dimensions: 21 × 12 × 7 cm
Voltage (attribute): 36V
Current (attribute): 20A
Brand: Li2GO

Applications

• Portable medical devices
• Fishing equipment
• Industrial power tools
• Telecommunications equipment
• Light electric vehicles
• Power backup systems
• Any battery with 36V nominal (42V full charge)

Competitive advantages

• Durability from aluminum construction
• Safety via multiple protection mechanisms
• High efficiency and cooling enabling fast, stable charging

Package contents

• Lithium battery charger
• AC power cable 220V
• Charging connector: Anderson (default)
• User manual and warranty information

Options and connectors
Output connector can be configured at order. Available types: XLR, XT30, XT60, XT90, Anderson 50A, DC2.1, DC2.5, etc.

Characteristics / Technical specifications

• Commercial model: Lithium battery charger (commercial name without technical model)
• Maximum charge voltage: 42V
• Compatible nominal battery voltage: 36V
• Output current: 20A
• Output power: 840W
• AC input: 100-240 VAC
• Supported technologies: Li-Ion, Li-Po
• Material: Aluminum housing
• Cooling system: Fans and/or integrated heatsinks
• Protections: Overload, short-circuit, overvoltage, reverse polarity
• Indicators: LEDs for status and diagnostics
• Weight: 1.5 kg
• Dimensions: 21 × 12 × 7 cm
• Brand: Li2GO
• Contents: charger, 220V cable, Anderson connector (default), manual and warranty
