Electric vehicle battery charger 36896

desktoplithiumCE

Summary

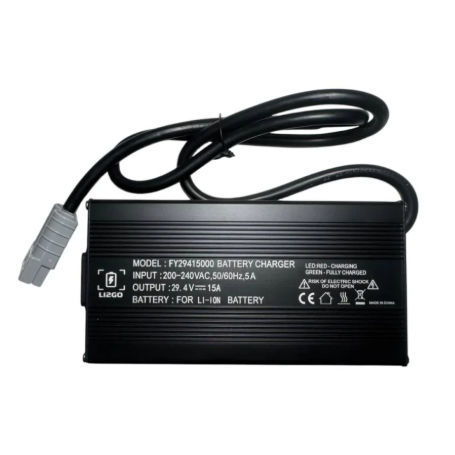

The Li2GO lithium battery charger is an industrial-grade charger with an aluminum enclosure and advanced cooling, designed for efficient and safe charging of Li‑Ion battery packs in professional applications.

Short description
Charger supplying 15A output current with protections against short circuit, reverse polarity and overvoltage; aluminum housing and advanced cooling ensure stable operation in demanding environments.

Additional information (table)
Weight: 1.5 kg
Dimensions: 17.5 × 9 × 7 cm
Voltage (specified on datasheet): 25.2V
Current: 15A
Brand: Li2GO

Technical features (summary / list)

• Output voltage: 29.4V
• Input voltage: 100–240 VAC
• Output current: 15A
• Output power: 441W
• Charging technology: Li‑Ion charging algorithm
• Housing material: Aluminum finish (thermal dissipation)
• Cooling system: Advanced cooling (silent fans and/or integrated heatsinks)
• Protections: Overload, short circuit, overvoltage, reverse polarity
• LED indicators: Charge status and fault diagnostics
• Energy efficiency: > 90%

Compatibility and applications
Compatible with battery packs and devices operating at 29.4V (nominal 25.2V, 29.4V at full charge). Typical applications: portable medical equipment, industrial power tools, telecom backup units, light electric vehicles, marine 24V Li‑Ion battery systems and other professional equipment.

What's included in the package?

• Li2GO lithium battery charger
• AC power cable (220V)
• Charge connector: Anderson (included)
• User manual and warranty information

Output connector options
Various output connectors available on request: XLR, XT30, XT60, XT90, Anderson 50A, DC2.1, DC2.5, etc., configurable to application requirements.

Competitive advantages

• Durability: Aluminum housing provides impact resistance and effective heat dissipation
• Safety: Multiple integrated protections for industrial use
• Efficiency: Fast charging combined with advanced thermal management

Technical specifications

• Output voltage: 29.4V
• Nominal voltage listed: 25.2V (29.4V at full charge)
• Input voltage: 100–240 VAC
• Output current: 15A
• Output power: 441W
• Supported battery chemistry: Li‑Ion
• Material: Aluminum-finished enclosure
• Cooling: Advanced cooling (fans/heatsinks)
• Protections: Overload, short circuit, overvoltage, reverse polarity
• Indicators: LEDs for charge status and diagnostics
• Energy efficiency: >90%
• Weight: 1.5 kg
• Dimensions: 17.5 × 9 × 7 cm
