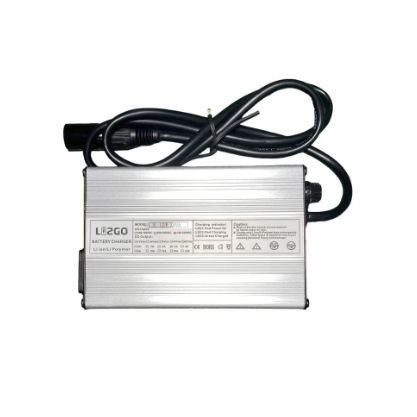

Electric vehicle battery charger LIPO 720

desktoplithiumCE

Description
The lithium battery charger with aluminium finish and advanced cooling system, designed to provide efficient, safe and durable charging for industrial and professional applications. Compatible with Campagnola LIPO 720, Campagnola LIPO 750 and Campagnola LIPO 550 batteries.

Technical specifications

• Output voltage: 21V
• Input voltage: 100–240 VAC
• Output current: 5 A
• Output power: 120 W
• Charging technology: Li‑Ion / Li‑Po

Material and construction

• Aluminium finish
• Aluminium advantages:
  • Durability: resistance to shocks and drops
  • Heat dissipation: improved thermal management

Cooling system

• Advanced cooling (silent fans and/or integrated heatsinks) to prevent overheating and maintain optimal performance

Safety and protection

• Overload protection
• Short-circuit protection
• Overvoltage protection
• Reverse polarity protection

Indicators

• LED charge status indicators
• Fault diagnostic indicators

Compatibility and applications

• Compatible with devices and batteries operating at 21V (includes agricultural Campagnola batteries LIPO 720, LIPO 750 and LIPO 550)
• Applications: portable medical devices, fishing equipment, industrial power tools, telecommunications equipment, light electric vehicles, backup power systems and other professional uses
• Suitable for any battery with nominal voltage of 18V (21V at full charge) and agricultural batteries with charging voltage of 16.8V

Efficiency

• High energy efficiency (> 90%)
• Low power consumption, eco-friendly design

Includes

• Lithium battery charger
• Mains cable for 220V connection
• Charging connector: XLR (other connectors available on request)
• User guide and warranty information

Connector options

• Output connector configurable on request: XLR, XT30, XT60, XT90, Anderson 50A, DC2.1, DC2.5, etc.

Additional information
Weight: 0.8 kg
Dimensions: 135 × 90 × 50 cm

Features / Technical specifications

• Output voltage: 21V
• Input: 100–240 VAC
• Current: 5 A
• Power: 120 W
• Technology: Li‑Ion / Li‑Po
• Material: aluminium-finish body
• Cooling system: advanced cooling (fans/heatsinks)
• Protections: overload, short circuit, overvoltage, reverse polarity
• LED indicators: charge status and diagnostics
• Weight: 0.8 kg
• Dimensions: 135 × 90 × 50 cm
