Gas sampling probe SP10

stainless steelheatedregulated

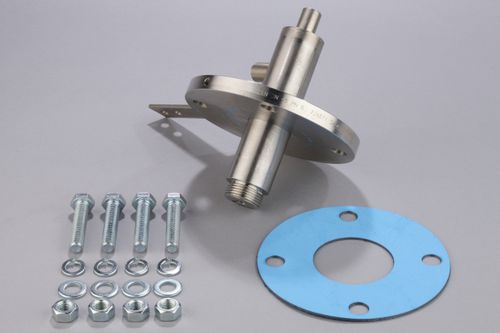

- Gas sample probe for processes with high dust levels - Consisting of an adapter tube with flange and screwed-on pre-filter - With stainless steel pre-filter - Fast response time - Easy installation and low maintenance - Material of sample-contacting parts: stainless steel, Novapress® - Optional: pre-filters with or without volume displacer and extension tubes in various lengths and materials, protection plate for pre-filter The M&C gas sample probes version SP 10 are to be installed for continuous sampling of highly dust-loaded gases, large flow sampling as well as for general gas sampling. Due to its compact design, it requires only limited space. Gas sample probe type SP10 with an in‑situ stainless steel filter V10, outer diameter: 46 mm, filter porosity: 2 µm, probe length: 270 mm, mounting flange DN 65 PN 6B, material: SS 316L and 316Ti
