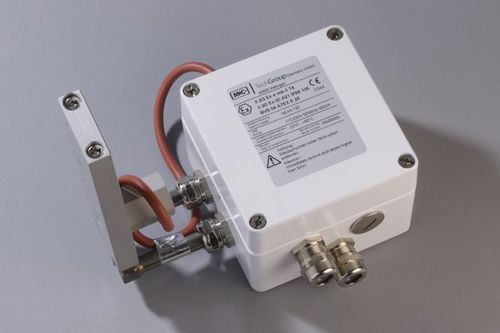

Gas sampling probe HEX4-135

heated

- Self-regulating Ex heater for heating metal bodies - Approval according to ATEX, IECEx for sampling from gas Ex zones 1/2 or 21/22 - For gas sample probes type SP3000, SP3100 and SP3110 or heated filters, mounting is carried out by M&C - Heater can also be used when heating energy radiates through a suitable partition wall into areas of Ex zone 0 or 20 - Operating temperature range from 90 to 120 °C [194 to 248 °F] - Maximum surface temperature: 135 °C [275 °F] - With low-temperature alarm contact - Power: 110–240 V Option: heating type HEX4‑135, explosion‑proof version for mounting in Ex zone 1/2, 21/22 and onto the dividing wall to zone 0/20 with protection class according to ATEX, EX II 2 G Ex eb mb IIC T4 Gb, EX II 2 D Ex tb IIIC 135°C Db BVS 04 ATEX E 253 / IECEx BVS 15.0060, self‑regulating to 90 °C at ambient 0 °C, maximum surface temperature: 135 °C, power: 115/230 V AC, 400 W
