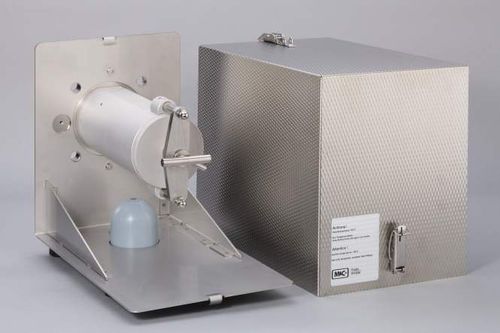

Gas sampling probe SP3200V/EX

processexplosion-proofstainless steel

- Gas sample probe for sampling from zones with explosive gas - Approval according to ATEX, CSA and FM for sampling from gas Ex zone 2 or 22 and Class I Division 2, respectively - Approval according to ATEX, CSA and FM for mounting in Ex zone 2 or 22 and Class I Division 2, respectively - Stainless steel filter element, ceramic optionally available - Sealing material for filter housing lid: Viton® - Sealing material for flange: graphite - Adaption to nearly all process conditions due to its compact and modular design - Easy installation and low maintenance - Low dead volume - Material of sample-contacting parts: stainless steel, graphite, Viton® - Optionally: different valves available for back-purging, test gas feeding or sample gas outlet shut-off - Optionally: sample tube, pre-filter with or without extension tube, heater type HEX 5, back-purge unit, 2-way or 2/3-way ball valve in the probe inlet, pneumatic actuator for a ball valve, second sample gas outlet, spun-glass cartridge The M&C sample probes version SP3200 are used for continuous sampling of explosive gases (Ex zone 2) from dust-loaded, high-temperature and/or humid processes. The probes can be mounted in Ex zone 2. Gas sampling probe type SP3200V/Ex for zone 2 with weather protection cover, version for mounting in Ex zone 2 and sampling from zone 2 with protection class according to ATEX II 3 G Ex ec nC IIC Gc, ATEX II 3 D Ex tc IIIC Dc and CSA ClassI, Div2 A/B/C/D T zz, filter element type S‑3SS150, filter porosity: 3 µm, filter element seal made of graphite, cover seal made of Viton®, flange DN 65 PN6
