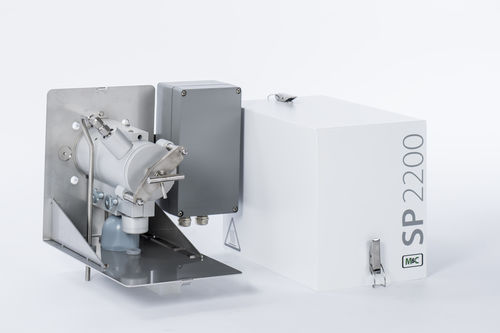

Gas sampling probe SP2200-H/C/I/BB-F

processstainless steelheated

- Heated gas sample probe for processes with high dust levels - 2 integrated check valves: for test gas and purge gas application - Purge gas is fed via the filter element into the process for back-purging - Pneumatic shut-off valve closes sample gas outlet during test gas feeding or back-purging - Including weather protective cover - Filter housing and mounting flange can be heated to max. 180 °C [356 °F] - With ceramic filter element, other filter materials are optional - Easy installation and low maintenance - Low dead volume - Power: 230 V - Material of sample-contacting parts: stainless steel, FKM, Novapress®, ceramic The SP2200-H sample probes are used for continuous sampling of gases from highly dust-loaded, high-temperature or humid processes. They can be back-purged with a closed sample gas outlet. Gas sample probe type SP2200‑H/C/I/BB‑F with external ceramic filter type S‑2K150, filter porosity: 2 µm, with electrically heated external filter 0 to 180 °C adjustable by an integrated thermostat, high‑temperature limiter with reset key responding at +30 °C Tset and low‑temperature alarm with potential‑free status‑alarm contact at ‑30 °C below Tset, with calibrating, isolating and flushback valve for back‑purging via the filter element, incl. weather protection shield with insulation, power: 230 V/50 Hz, 800 W, mounting flange: DN 65 PN 6B with G 3/4" f connection, sample gas OUT: 1/4" NPT f, material: SS 316Ti, ceramic, Viton®
