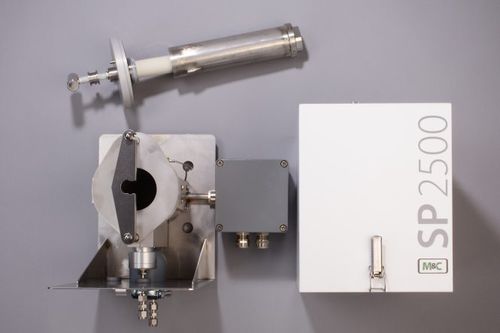

Gas sampling probe SP2500-H/C/I/BB-F

processstainless steelheated

- Heated gas sample probe for processes with high dust levels - Extractable without dismounting the probe: filter housing with optional sample tube or pre-filter - 2 integrated check valves: for test gas and purge gas application - Purge gas is fed via the filter element into the process for back-purging - Pneumatic shut-off valve closes sample gas outlet during test gas feeding or back-purging - Including weather protective cover - Filter housing and mounting flange can be heated up to max. 180 °C [356 °F] - With ceramic filter element, other filter materials are optional - Easy installation and low maintenance - Low dead volume - Power: 230 V - Material of sample-contacting parts: stainless steel, FKM, Novapress®, ceramic The SP2500-H/C/I/BB/F sample probes are used for continuous sampling of gases from highly dust-loaded, high-temperature or humid processes. They can be back-purged via the filter and the pre-filter with a closed sample gas outlet. The pre-filter can be removed without dismantling the sample probe. Gas sample probe type SP2500‑H/C/I/BB‑F with external ceramic filter type S‑2K150, filter porosity: 2 µm, sample tube or pre‑filter retractable through the sample probe head, i ncluding 2 rotatable protection plates at the probe head, w ith electrically heated external filter from 0 to 180 °C, adjustable by an integrated thermostat
