- Pre-filter for gas sampling from processes with high dust levels
- For cleaning purposes: pre-filter can be back-purged
- For dust loads from 2 to 10 g/m3
- Male thread connection: G 3/4"
- Length: 220 mm [≈ 0.7 ft] without thread connection
- Filter porosity: 2 µm
- Sampling temperature: max. +600 °C [+1112 °F]
- Material of sample-contacting parts: stainless steel, Novapress®

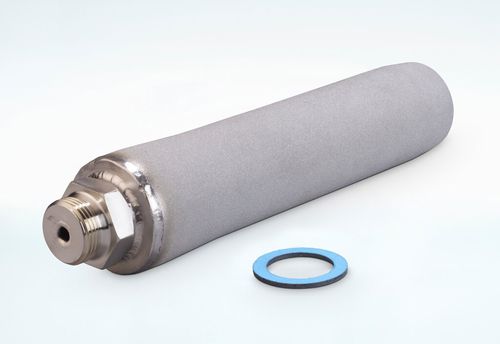

Stainless steel pre-filter, up to max. 600 °C, in different versions
The M&C pre-filters are used in combination with the M&C gas sample probes series SP for continuous gas sampling in processes with an increased level of dust.
Pre‑filter type V20 for SP2000‑H, stainless steel pre‑filter without volume displacer, length: 220 mm, 46 mm OD, filter porosity: 2 µm, temperature: max. 600 °C, connection: G 3/4", material: SS 316L/316Ti
