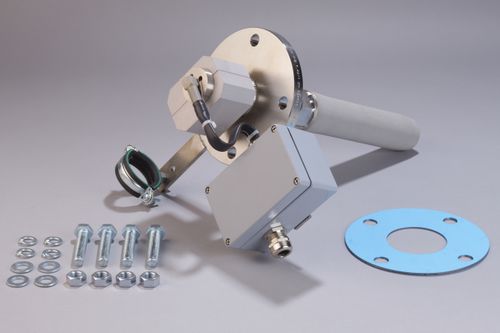

Gas sampling probe SP10-H

stainless steelheatedregulated

- Heated gas sample probe for processes with high dust levels - Consisting of a heated adapter tube with flange and screwed-on pre-filter - With adjustable heating temperature from 100 to 200 °C [212 to 392 °F] - With stainless steel pre-filter - Fast response time - Easy installation and low maintenance - Power: 230 V, 115 V optionally - Material of sample-contacting parts: stainless steel, Novapress® - Optional: pre-filters with or without volume displacer and extension tubes in various lengths and materials, protection plate for pre-filter heated from 0 to 180 °C, with stainless steel filter tube inside, optionally: other filter materials, power: 115 V/60 Hz, with weather-proof protection shield The M&C gas sample probes version SP 10-H are to be installed for for continuous gas sampling in processes with a high level of dust and for sampling large quantities of gas. Due to its compact design, it requires only limited space. Gas sample probe type SP10‑H, with in‑situ stainless steel filter V10, outer diameter: 46 mm, filter porosity: 2 µm, max. temperature: 600 °C, total length: 270 mm, rod heating in the flange area: 100 to 200 °C, adjustable by an integrated thermostat, power: 230 V/50 Hz, mounting flange: DN 65 PN 6B, sample gas outlet: 1/8" NPT female, m aterial: SS 316 L and 316Ti
