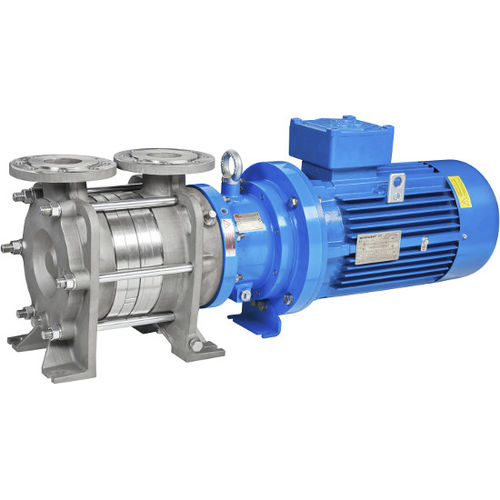

Side-channel pump SCE MAG-M

waterelectricstationary

Construction and dimensions according to EN 734, this design ensure strong self-priming performance. Field of application SC MAG-M pumps range meets the requirements on custom-built solutions in the process industry, in the following areas: Chemical and pharmaceutical, transfer of aggressive, highly corrosive liquids, paper, food processing, plant engineering and construction. For all industries that choose a pumping leak-free and low maintenance for use continuous (abandon of mechanical seal pumps). Design features SCE pump series are heavy horizontal self priming, side channel pumps, with top suction and discharge, designed specifically for clean chemical process, low boiling and highly volatile, explosive and dangerous liquids, even in presence of high gas percentages. Low speed operation ensure long life, noiseless performance and reliability. This pump range is dimensionally corresponding to EN 734. Materials Standard execution includes CF8M pump casing, cover & Duplex 22%Cr impellers High quality casting components. Materials as an option: – Hastelloy®, – Incoloy®, – Duplex, – Others available on request. SCE series are available with 3 different containment shell configurations: – Hybrid Containment shell – HC – Zero Losses
