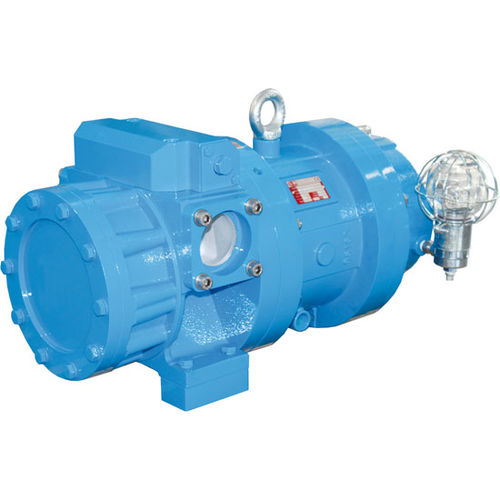

Water pump MHV MAG-M

electricvanestationary

The long-coupled pump is connected to the B5 motor type by an elastic coupling. Positive displacement hollow disc magnetic drive pumps. Field of application MHV MAG-M pumps range meets the requirements on custom-built solutions in the process industry, in the following areas: Chemical and pharmaceutical, transfer of aggressive, highly corrosive liquids, paper, food processing, plant engineering and construction. For all industries that choose a pumping leak-free and low maintenance for use continuous (abandon of mechanical seal pumps). Design features Pumps of the series MHV MAG-M are Positive displacement hollow disc magnetic drive pumps. Main features of these pumps are: self priming capability, reversible flow, and its low speed rotation. The low speed rotation fact, together with a new magnetic coupling design, allows an installed power almost identical to the traditional hollow disc pumps with mechanical seal, reducing magnetic losses to a minimum. The hollow disc is eccentrically mounted in the rotor shaft and turns around the suction and discharge cameras separator vane. In this way the piston is obliged to follow the trajectory around the vane and externally to the pump head, where it is pushed via an elastic device internally inserted. A silent and reliable pumping is achieved, without vortexes nor liquid breakages, for viscous fluids even above 10000 cst.
