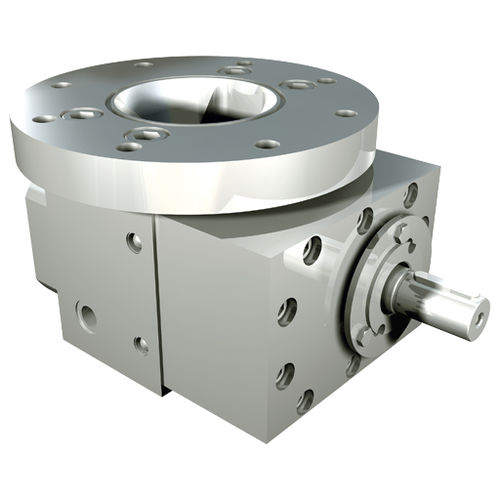

External-gear pump Cinox Therminox
acidfor solventspolymer

External-gear pump - Cinox Therminox - Maag Germany GmbH - acid / for solvents / polymer
External-gear pump - Cinox Therminox - Maag Germany GmbH - acid / for solvents / polymer
Add to favorites
Compare this product

Characteristics

Technology
external-gear
Fluid
acid, for solvents, polymer, for food products, for resins, for adhesives
Operation
with asynchronous motor
Priming
self-priming
Mobility
stationary
Domain
industrial, chemistry, for oil industry applications
Applications
high-pressure, discharge, feed, chemical process, for lubrication, for industrial applications, transport, high-temperature, for hazardous locations, for high-pressure applications, for lubrication systems, for high-temperature applications
Material
stainless steel
Fluid specification
for aggressive media, for high-viscosity products, for high-viscosity fluids, for corrosive fluids, flammable products, for engine oil
Protection level
chemical-resistant, explosion-proof, ATEX
Other characteristics
high-efficiency, flange-mounted
Flow

Max.: 265 l/min
(70.00559 us gal/min)

Min.: 2.5 l/min
(0.66043 us gal/min)

Pressure

200 bar
(2,900.755 psi)

Fluid temperature

Max.: 200 °C
(392 °F)

Min.: -30 °C
(-22 °F)

Description

Stainless steel reactor discharge pump for chemical polymer production processes – cinox®-V therminox®-V The pump models cinox®-V therminox®-V are discharge pumps. They have been designed for highly viscous fluids, which are gently extracted from reactors and degassing devices even when the inlet pressure is low, ensuring optimum fill characteristics and short dwell times. This new pump series combines the outstanding flow characteristics of the polymer pumps with the exacting requirements of the chemical industry. Advantages - Optimum fill characteristics due to enlarged inlet and optimum inlet geometry - Low pulsation - High efficiencies thanks to application-specific clearances - Reliability - Longevity - Safety Selection of typical pumped media - Prepolymers, oligomers, and monomers - Dopes - Spandex - Resins - Adhesives - Silicones - Waxes and paraffins - Emulsifying agents - Gum base Certificates - ATEX certificate - 3.1 certificate - German Air Quality certificate (TA-Luft) - Performance test certificates Options - Electrical heating - Heated product flanges Accessories - Product connecting flanges - Motors and gear reducers - Universal shafts, hubs - Frequency converters - Sealing liquid system
