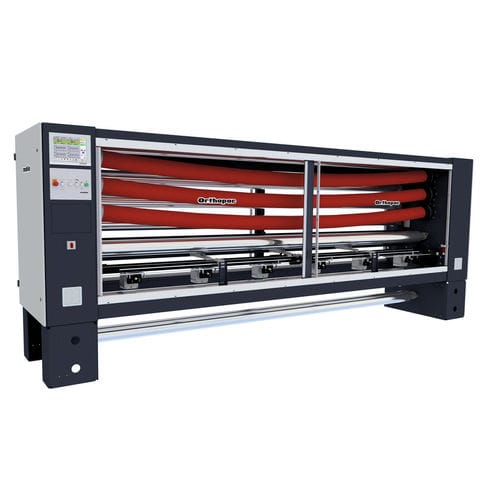

Fabric straightening machine Orthopac GRVMC

wefthydraulic

Overview
The Orthopac GRVMC -15 is a modular weft straightening and process-control system engineered for heavyweight textiles. It features a reinforced frame, heavy-duty roller bearings and larger-diameter bow and skew rollers. Scanners, electronics and the control/display station correspond to the Orthopac RVMC configuration; all scanners remain laterally adjustable.

Heavy-duty weft straightening
Designed for wide goods and dimensionally stable textiles with defined skew settings (e.g. denim, carpet). Frame, bearings and rollers are sized for high mechanical loads and high tensional forces, enabling accurate correction under heavy strain.

Product highlights

• Reinforced heavy-duty construction
• Working widths up to 5400 mm
• Suitable for tensional forces up to 400 kg

Customer benefits

• Maintain tight distortion (bow/skew) tolerances on heavyweight materials
• Document residual distortions for process control and QA
• Reduce rejects and customer complaints through consistent correction

Design and components
The machine includes reinforced hydraulic units for precise roller positioning under high load, a solid reinforced frame and reinforced roller bearings. Bow and skew rollers are larger in diameter for stable handling. Scanners, electronics and the operator station follow Orthopac RVMC standards; scanners remain laterally adjustable. Processing speeds typically range from approx. 3 m/min (carpeting) to 250 m/min (industrial textiles), depending on material.

Area of application

• Denim
• Industrial fabrics
• Raschel curtain fabrics
• Glass- and carbon-fibre woven fabrics
• Carpeting

Variants

• Orthopac GRMM Straightener: manual straightening machine without optical scanning or automatic control. Can be used with the PCS Pattern Control System or retrofitted with scanning/combi options.

Sensors (typical compatible sensor systems)

• Scanner TK-12 — optoelectronic scanning (reflex light)
• Scanner CK-15 — imaging scanning (camera sensor)
• Scanner CTK-15 — imaging scanning for carpets & technical textiles
• Patcontrol PCS — pattern detection / weft distortion control system

Characteristics / Technical specifications

• Model: Orthopac GRVMC -15
• Intended materials: heavyweight textiles (denim, carpet, industrial fabrics, Raschel, glass/carbon weaves)
• Maximum working width: up to 5400 mm
• Suitable tensional forces: up to 400 kg
• Processing speed range: approx. 3 m/min to 250 m/min (material dependent)
• Construction: reinforced frame, reinforced roller bearings, larger-diameter bow and skew rollers
• Hydraulics: reinforced hydraulic units for roller positioning under high load
• Scanners & control: laterally adjustable scanners; electronics and control equivalent to Orthopac RVMC
• Variants: GRMM manual variant available for retrofit or PCS combination
• Brand: Mahlo
