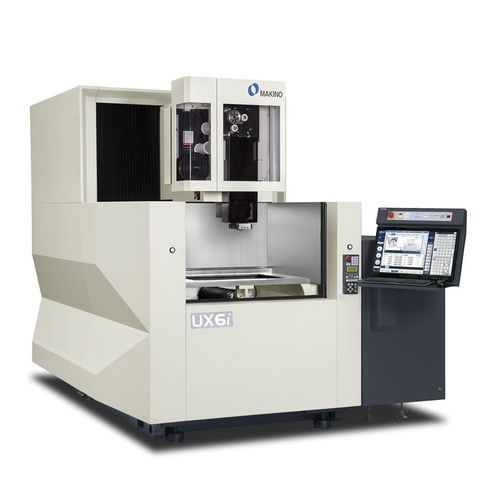

Wire electrical discharge machine UX6i

wire-cutwire EDMhigh-accuracy

Overview
The Makino UX6i is a wire EDM machine engineered for precision machining of tool steels and complex parts. Using a higher-frequency HFG generator with lower current increases machining speed while improving surface finish, delivering reduced cycle times even when the absolute finest finish is not required. Example: a 50 mm (2.0") H13 punch machined to a 10 µin Ra (0.25 µm Ra) target achieved a 5% reduction in machining time and an 8 µin Ra (0.20 µm Ra) finish with four-pass machining.

UXi Series Features
Thermal stability is managed by an internal radiator cooling system and a high-accuracy chiller that maintains temperature within ±0.1ºC. The UXi platform also provides a worktable with improved flatness accuracy and an auto seal plate shower to keep the seal plate lubricated and cleaner. The Hyper Drive Extreme Wire Guide System, driven by an AC servo motor tensioning system, offers a wider range of wire tension settings and enhanced dynamic corner control for improved straightness, size, shape and corner accuracy. Threading and recovery features include jet-less threading for interrupted or hollow parts and very small start holes, an enhanced auto-wire-threading process with annealing to straighten wire, and the ability to thread in a gap after a wire break to reduce recovery time.

Technical specifications (metric)
Table: 4-Sided 910 x 710 mm
X: 650 mm Y: 450 mm Z: 420 mm
U-Axis: ±75 mm
V-Axis: ±75 mm
Maximum Workpiece Size: 1000 x 800 x 400 mm Tall
Maximum Workpiece Weight: 1,500 kg
Tank Size: 1,070 mm x 880 mm
Available Wire Size: 0.100 mm, 0.150 mm, 0.200 mm, 0.250 mm, 0.300 mm ø

Technical specifications (english)
Table: 4-Sided 35.8" x 28.0"
X: 25.6" Y: 17.7" Z: 16.5"
U-Axis: ±3.0"
V-Axis: ±3.0"
Maximum Workpiece Size: 39.4" x 31.5" x 15.8" Tall
Maximum Workpiece Weight: 3,307 lb
Tank Size: 1,070 mm x 880 mm (as listed in metric)
Available Wire Size: 0.004", 0.006", 0.008", 0.010", 0.012" ø

Technical specifications

• Model: UX6i
• Manufacturer: Makino
• Table (metric): 4-Sided 910 x 710 mm — X 650 mm, Y 450 mm, Z 420 mm
• Table (english): 4-Sided 35.8" x 28.0" — X 25.6", Y 17.7", Z 16.5"
• U-Axis travel: ±75 mm (±3.0")
• V-Axis travel: ±75 mm (±3.0")
• Maximum workpiece size: 1000 x 800 x 400 mm (39.4" x 31.5" x 15.8")
• Maximum workpiece weight: 1,500 kg (3,307 lb)
• Tank size: 1,070 mm x 880 mm (42.12" x 34.64")
• Available wire sizes: 0.100, 0.150, 0.200, 0.250, 0.300 mm (0.004", 0.006", 0.008", 0.010", 0.012")
• HFG Generator improvements: higher frequency with lower current for improved surface finish and reduced machining time (example: 5% time reduction; achieved 8 µin Ra / 0.20 µm Ra on H13 tool steel)
• Thermal control: internal radiator cooling + high-accuracy chiller maintaining ±0.1ºC
• Worktable: higher flatness accuracy
• Threading: jet-less threading, enhanced auto-wire-threading with annealing, ability to thread in gap after wire break
• Wire guide: Hyper Drive Extreme Wire Guide System with AC servo motor tensioning and dynamic corner control
