Wire EDM electrical discharge machine UPV-5

high-accuracyprecision3D

Overview

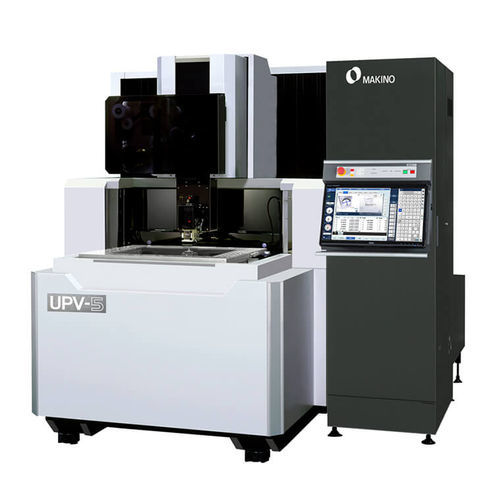

The UPV-5 wire EDM machine provides ultra-precision machining with oil-based dielectric to control discharge energy, enabling low-power cutting and surface finishes down to 0.02 µm Ra (1 µin Ra). The oil dielectric is chemically neutral (no oxidation), protects synthetic materials such as PCD and carbide, and reduces metallurgical impact (reduced HAZ and recast) versus water-based dielectrics.

Design and applications
Built on Makino’s Uj-Series platform with a stationary table and tight construction tolerances, the UPV-5 includes a 3-sided rise-and-fall work tank for easy access and automated loading. It is intended for ultra-precision applications including fine-blanking and precision stamping die components, and can be configured for cutting tool insert manufacturing with optional integrated 3D setup probe and rotary table.

Control and operator features
Standard with Makino’s Hyper i control on a 24" class HD touchscreen with smartphone/tablet pinch/swipe/drag functionality and an advanced handbox. Hyper i includes on-board electronic manuals, E-Tech Doctor diagnostics, and video training tutorials. The UPV-5 ships standard with integrated safety equipment including a fire suppression system for extended unattended operation.

Key advantages

• Oil-based dielectric enabling ultra-low discharge power and surface finishes to 0.02 µm Ra (1 µin Ra)
• Eliminates oxidation and preserves metallurgical integrity of steel, PCD and carbide
• Stationary table Uj-Series construction for high accuracy
• 3-sided rise/fall work tank for easy access and automation compatibility
• Hyper i control with 24" HD touchscreen, handbox, diagnostics and training resources
• Standard integrated fire suppression

Technical summary (table)
Table: 810 mm x 550 mm
X: 550 mm Y: 370 mm Z: 220 mm

Maximum Workpiece Size: 960 mm x 690 mm x 100 mm
Maximum Workpiece Weight: 550 kg
Tank Size: 810 mm x 550 mm

Note
Optional configuration available with integrated 3D setup probe and rotary table for cutting tool insert manufacturing; features target ultra-precision and unattended operation.
