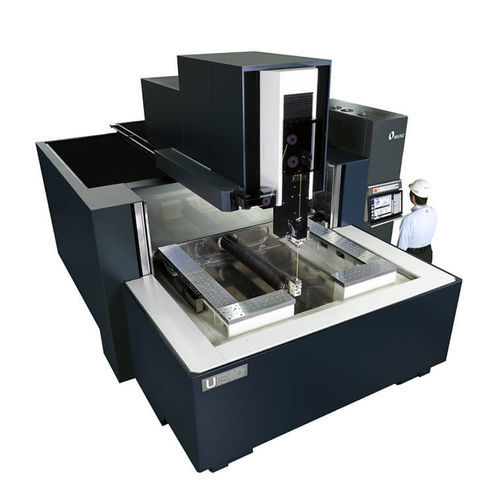

Wire electrical discharge machine U1310

wire EDMhigh-accuracyhigh-speed

Overview The Makino U1310 wire EDM delivers high-precision, high-speed machining on an extra-large work envelope. It provides positioning accuracy of ±3 µm over the full stroke, Makino H.E.A.T. technology for low wire consumption and superior part straightness, and a stationary work table that supports workpieces up to 6,000 kg. The machine offers reliable automatic wire threading via the Split Precision V-Guide at full Z-stroke (620 mm) and a programmable 3-sided Drop Tank for easy loading and automation integration.

Features

• High positioning accuracy: ±3 µm (±0.0001”) over full stroke
• Makino H.E.A.T. technology for low wire consumption and excellent part straightness
• Stationary table supports heavy workpieces up to 6,000 kg (13,228 lbs.)
• Reliable automatic wire threading at full Z-stroke height (620 mm / 24.4”)
• Split Precision V-Guide: significantly reduced maintenance and ~34× longer guide life vs. round wire guides
• Programmable 3-sided Drop Tank for unobstructed access, simplified loading/unloading and automation integration
• Integrated dielectric reservoir in base casting for improved thermal stability and ~30% smaller installation footprint
• Hyper-i control with large 24" class HD touch-screen and intuitive touch gestures
• Onboard electronic manuals, instructional videos, E‑Tech Doctor help and full-function advanced Handbox

Technical specifications (Metric) Table: Opposed L-Shape (1,720 × 1,475 mm)
X: 1,310 mm, Y: 1,010 mm, Z: 520 mm (optional 620 mm)
U-Axis: ±101 mm
V-Axis: ±101 mm
Maximum Workpiece Weight: 6,000 kg
Maximum Workpiece Size: 2,000 × 1,600 mm
Available Wire Sizes: 0.200, 0.250, 0.300 mm Ø

Technical specifications (Imperial) Table: Opposed L-Shape (67.7” × 58.1”)
X: 51.57”, Y: 39.76”, Z: 20.47” (optional 24.41”)
U-Axis: ±3.98”
V-Axis: ±3.98”
Maximum Workpiece Weight: 13,228 lbs.
Maximum Workpiece Size: 79” × 63”
Available Wire Sizes: 0.008”, 0.010”, 0.012” Ø

Key specifications

• Model: U1310
• Table type: Opposed L-Shape (programmable 3-sided Drop Tank)
• Travel X × Y × Z (metric): 1,310 × 1,010 × 520 mm (Z optional 620 mm)
• Travel X × Y × Z (imperial): 51.57” × 39.76” × 20.47” (Z optional 24.41”)
• Additional axes: U ±101 mm, V ±101 mm (±3.98” U/V)
• Workpiece support: up to 6,000 kg (13,228 lbs.)
• Maximum workpiece size: 2,000 × 1,600 mm (79” × 63”)
• Wire sizes available: 0.200 / 0.250 / 0.300 mm Ø (0.008”, 0.010”, 0.012” Ø)
• Key technologies: Makino H.E.A.T., Split Precision V-Guide, Hyper-i control, integrated dielectric reservoir
