Overview
For decades MANN+HUMMEL has developed and manufactured tailor-made air cleaner systems for a wide range of heavy-duty applications. Offerings range from single filter elements with housing to complete air cleaner systems with dirty- and clean-side ducts, safety element and cyclone pre-separator. Systems are designed for small to large engines and allow multiple functional integrations.

Product benefits

• Optimised use of installation space with customised oval filter elements
• Air filter media designed to meet future filtration requirements
• Integration options: water separators, dust pre-separators, acoustic components
• Optional safety element for engine protection
• Accessible design for easy servicing of main and safety filters

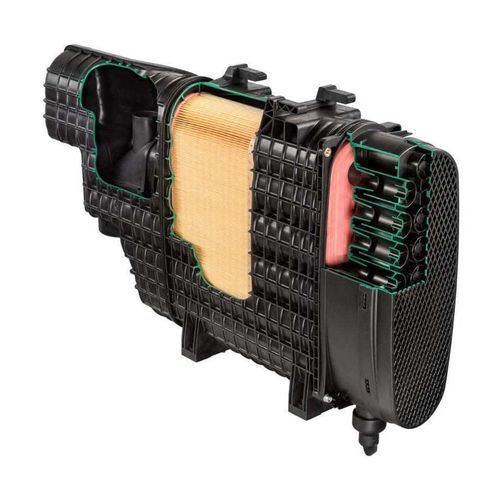

High performance details

• Air cleaner housing: Space-saving geometry uses installation space behind the cabin and accommodates an integrated resonator and service switch; coolant reservoir can be mounted on top.
• Intake grid: Retains coarse debris such as leaves or cigarette butts.
• Cyclone upper part: Cyclone flaps impart rotational motion; centrifugal forces drive dust particles to internal walls.
• Cyclone lower part: Air exits through openings between upper and lower parts while dust is expelled via the discharge valve.
• Air filter element: Oval element with acoustic chambers and polyurethane end plates; acoustic chambers reduce noise and improve flow.

Further information
The latest air cleaner generation from MANN+HUMMEL for commercial vehicles increases performance without requiring additional installation space thanks to the oval filter element and optimised flow characteristics.

Technical specifications

• Customised systems: single filter element with housing to complex systems with dirty/clean ducts
• Possible integrations: water separators, cyclone pre-separators, acoustic components, safety element
• Filter design: oval element with acoustic chambers and polyurethane end plates
• Housing features: integrated resonator, service switch, coolant reservoir mount option
• Pre-separation: cyclone upper and lower parts with centrifugal dust separation and discharge valve
• Intake protection: intake grid to retain coarse debris (leaves, cigarettes)
• Serviceability: designed for easy servicing of main and safety filter elements
• Application range: suitable for small to large engines in heavy-duty commercial vehicles
