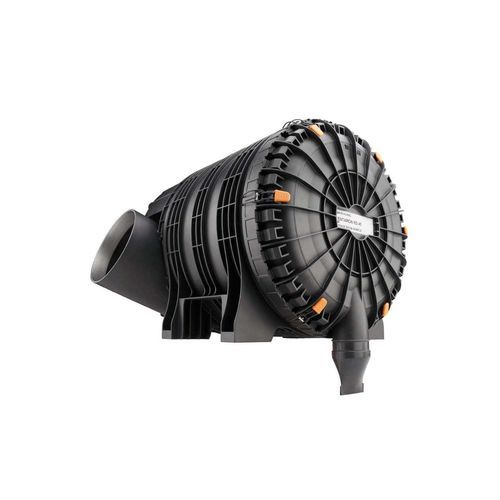

Cartridge filter unit ENTARON XD/MD

particulatewith filter cartridgeair

Overview
The MANN+HUMMEL ENTARON XD and ENTARON MD series are plastic-housed air cleaners engineered for demanding industrial and mobile applications. ENTARON XD is a two-stage unit with a tangential raw-air inlet; ENTARON MD is a single-stage unit optimized for low initial pressure drop.

Key product narrative
Designed for heavy-duty and variable-duty environments, the ENTARON family extends proven separation performance with a modular plastic design that reduces weight and simplifies service while maintaining high separation efficiencies.

Product benefits

• High engine protection through elevated initial and final separation efficiencies
• Improved reliability via filter elements with an advanced sealing system
• Approx. 10% weight reduction versus conventional metal or hybrid solutions
• Modular design for flexible configuration and adaptation to different installations
• Tool-less element replacement using color-coded comfort fasteners for fast service

Powerful details
Robust housing
Housings are manufactured from glass-fiber-reinforced plastic with reinforcement ribs. The three-part design is welded to the tangential raw air inlet to secure orientation and integrated brackets. The clean-air outlet includes a metal reinforcement ring permitting hose-clamp torque up to 5 N·m. High pre-separation efficiency of ENTARON XD makes it suitable for heavy dust loads and often removes the need for an external pre-separator.

Smart details
Comfort fasteners feature color-coded operating elements and snap-in noses that lock during cover removal or fitting. The housing integrates a connection for a service switch/indicator and supports mounting with through-holes (standard) or threaded inserts (on request).

High-performance filter elements

• New sealing system for reliable element-to-housing sealing
• Robust plastic center tubes to reinforce elements (not for ENTARON XD/MD 40)
• More robust filter media for extended service life
• Glue-string pleat fixation for stability under varying conditions
• Safety element threaded to housing to prevent unintentional removal during service
• Additional main and secondary element variants available as options

Technical features

• Type of operation: ENTARON XD — two-stage; ENTARON MD — single-stage; ENTARON MD 40 with DualSpin XT — combination with external pre-separator
• Field of application: XD — mobile equipment with very high dust load (construction machines, harvesters, mobile cranes, compressors); MD — stationary machines, gensets, low dust-load applications; DualSpin versions — extreme dust load applications
• Volume flow range: ENTARON XD 7–40 m³/min; ENTARON MD 20–40 m³/min
• Pre-separation efficiency: up to 92% (with scavenging) for XD; ~87% (with dust discharge valve)
• Final separation efficiency: up to >99.99% depending on version
• Installation: vertical and horizontal possible depending on dust discharge valve position
• Service concept: front access with comfort fasteners; tool-less element change
• Water ingress protection: ENTARON XD 14–28 on request, XD 40 as standard

Further information
Catalogues and technical documentation are available with detailed curves, order numbers and installation/maintenance instructions.

Technical specifications

• Materials: Glass-fiber-reinforced plastic housing; metal reinforcement ring at clean-air outlet
• Housing design: Three-part welded housing with integrated brackets for orientation
• Weight reduction: Approx. 10% lighter than metal/hybrid equivalents
• Sealing: Advanced sealing system for secure element fit
• Filter media: Robust media with glue-string pleat fixation
• Center tube: Plastic center tubes for reinforcement (except ENTARON XD/MD 40)
• Service: Front access, color-coded comfort fasteners, tool-less element replacement
• Mounting: Through-holes standard; threaded inserts on request
• Service features: Connection for service switch/indicator; safety element threaded to housing
• Performance: Final separation efficiency up to >99.99%; pre-separation up to 92% with scavenging
• Volume flow ranges: ENTARON XD 7–40 m³/min; ENTARON MD 20–40 m³/min
• Typical applications: Heavy-duty mobile machines (XD), stationary low-dust applications (MD), special combination versions for extreme dust loads
