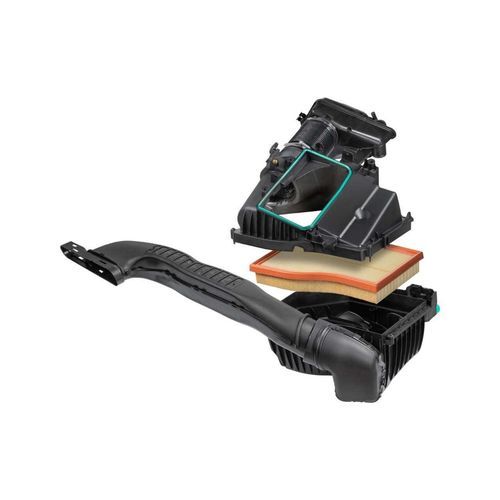

Cartridge filtration system

coalescingpanelair

Overview
For decades MANN+HUMMEL has developed and manufactured tailor-made air cleaner systems for passenger-car applications. Solutions range from single filter-element housings to complete air cleaner systems with dirty- and clean-side ducts and integrated acoustic measures. Systems protect engines from small 3-cylinder units up to large V12 layouts and include multiple functional integrations to meet OEM requirements.

Available system examples

• MANN+HUMMEL air cleaner system with Flexline filter element
• MANN+HUMMEL air cleaner with oval filter element
• MANN+HUMMEL dual-flow air cleaner system
• MANN+HUMMEL air cleaner system with two clean-side ducts
• MANN+HUMMEL air cleaner system with plastic over-molded fleece filter element
• MANN+HUMMEL air cleaner system with resonator

Product benefits

• Optimized use of installation space with custom-shaped filter elements
• Efficient air filter media designed to meet future contaminant and emissions requirements
• Possible integration of water separators and acoustic components
• Easy access and serviceability for filter element replacement
• Air cleaner housing can be designed as a styling component of the engine compartment

Further information / Application highlights
Flexline technology enables solutions for very tight and complex installation spaces. Applications include vortex generators to ensure optimum airflow to the air-mass sensor and a particularly stable sensor signal. Flexline solutions have been applied in series production for passenger-car OEMs.

Technical specifications

• Product type: Air cleaner systems for passenger cars (from single-element housings to complete systems with ducts and acoustic integration)
• Filter element types: Flexline elements, oval elements, plastic over-molded fleece elements and other customized shapes
• System variants: single-flow, dual-flow, systems with two clean-side ducts, systems with resonators
• Functional integrations: water separation, acoustic measures, vortex generators for optimized air-mass sensor signal
• Serviceability: designed for easy replacement and servicing of filter elements
• Installation focus: optimized utilization of installation space and potential styling of engine compartment via housing design
