Overview

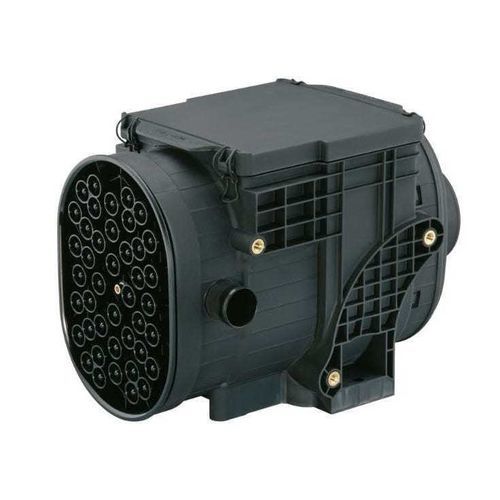

Tight installation spaces and high air flow rates are not in conflict for the IQORON two-stage air cleaner. The flexible designs of this series allow a number of possibilities for various applications. Complementary single-stage air cleaners of this range are designed for applications where a low pressure drop is required.

Product variants (high level)

• IQORON: Two-stage air cleaner with very high pre-separation and scavenging options.
• IQORON-V: Two-stage air cleaner; up to 90% pre-separation efficiency with dust discharge valve; available with different service concepts (front or side servicing depending on model).
• IQORON-S: Single-stage air cleaner designed for stationary applications with light dust loads offering low flow resistance.

Technical features (table)
Type of operation | IQORON | IQORON-V | IQORON-S
Field of application | Applications with high dust loads such as agricultural and construction machines, etc. | Applications with high dust loads such as agricultural and construction machines, mobile compressors, etc. | Stationary applications with light dust loads such as compressors
Volume flow range | 4 to 12 m³/min | 3 to 14 m³/min | 4 to 10 m³/min
Pre-separator | Multi-cyclone block (cleanable as required) | Multi-cyclone block (cleanable as required) | -
Pre-separation efficiency with dust discharge valve | - | Up to 90 % | -
Pre-separation efficiency with scavenging (10 %) | > 95 % | Up to 95 % | -
Final separation efficiency | > 99.99 % | > 99.99 % | > 99.97 %
Dust discharge | Scavenging (e.g. ejector or blower) | Dust discharge valve (option: scavenging) | -
Installation | Inline concept; vertical and horizontal installation possible; mounting with through-holes and/or threaded inserts | Inline concept; vertical and horizontal installation possible; mounting with through-holes and/or threaded inserts | Inline concept; vertical and horizontal installation possible; mounting with through-holes and/or threaded inserts
Service concept | Side servicing with standard fasteners | Front servicing with comfort fasteners (IQORON-V 4.5 and -V 7); side servicing with comfort fasteners for IQORON-V 9 and -V 14 | Front servicing with comfort fasteners

Product benefits

• Maximum service life through highly efficient cyclone pre-separation and CompacPleat element.
• Inline air flow for flexible installation in tight spaces (vertical and horizontal installation possible).
• Environmentally-friendly disposal through filter elements which are metal-free and fully incinerable.
• Pre-separator is easy to clean if required (removable multi-cyclone block).
• Various mounting possibilities for quick installation; integrated through-holes or threaded inserts depending on model.

Powerful in the smallest space
Due to compact designs and the use of polyamide reinforced with glass fiber, the IQORON series achieves higher temperature resistance compared to similar air cleaners. Typical continuous operating temperature range: -40 °C to +100 °C, with short-term peaks up to +120 °C. The inline air flow design enables flexible mounting and easy front or side servicing depending on variant.

High filter performance, maximum service life
The core of the IQORON series is the CompacPleat filter element (single or double bellow technology). For the same installation space the CompacPleat element provides a considerably higher filter surface area, resulting in high power density and long service life. The element is metal-free and fully incinerable; a reusable removal frame is available for a number of models.

Powerful details and components

• Main element: CompacPleat filter element with large filter surface area for long service life in tight installation spaces; enables linear air flow through the air cleaner.
• Secondary (safety) element: Provides additional reinforcement and protection during main element servicing; positioned downstream of the filter element and equipped with a radial seal to prevent ingress of dirt during servicing.
• Pre-separator: Highly efficient multi-cyclone block for heavy dust loads; removable and cleanable (compressed air or washing) if required.
• Installation features: Integrated through-holes for quick mounting on certain models; threaded inserts available as option for others, accelerating first installation.
• Service switch / indicator: Integrated M10x1 threaded connection for a service switch or indicator to monitor dirt level; if unused the connection is dust-sealed using the supplied protection cover.

Accessories and adaptation
For models with side servicing concept, specially developed intake hoods are available in multiple variants per filter size. These intake hoods are engineered to ensure optimal flow to the multi-cyclone cells and to preserve pre-separation efficiency and filter service life. Standardized accessories enable economical adaptation to different installation conditions.

Caractéristiques / spécifications techniques

• Series / Model: IQORON (IQORON, IQORON-V, IQORON-S).
• Type of operation: IQORON and IQORON-V = two-stage; IQORON-S = single-stage.
• Volume flow ranges: IQORON 4–12 m³/min; IQORON-V 3–14 m³/min; IQORON-S 4–10 m³/min.
• Pre-separation: Multi-cyclone block (cleanable) for two-stage variants.
• Pre-separation efficiency: IQORON >95% with scavenging; IQORON-V up to 90% with dust discharge valve or up to 95% with scavenging.
• Final separation efficiency: >99.99% (IQORON, IQORON-V), >99.97% (IQORON-S).
• Dust discharge: Scavenging or dust discharge valve (depending on variant).
• Filter element: CompacPleat (single or double bellow technology); metal-free, fully incinerable; optional reusable removal frame.
• Service concepts: Front or side servicing depending on variant and size; comfort fasteners on selected models.
• Installation: Inline airflow; vertical and horizontal installation possible; mounting via through-holes and/or threaded inserts.
• Material and temperature resistance: Housing material polyamide reinforced with glass fiber; continuous operation -40 °C to +100 °C, short-term peaks up to +120 °C (depending on model).
• Monitoring: Integrated M10x1 connection for service switch/indicator; sealed if unused.
